A rare beast.
Couldn’t resist, so I grabbed it for the collection.

3Л102В
3Л102В 1920x1600
3Л102В
3Л102В 1920x1600
3Л102В
3Л102В 1920x1600

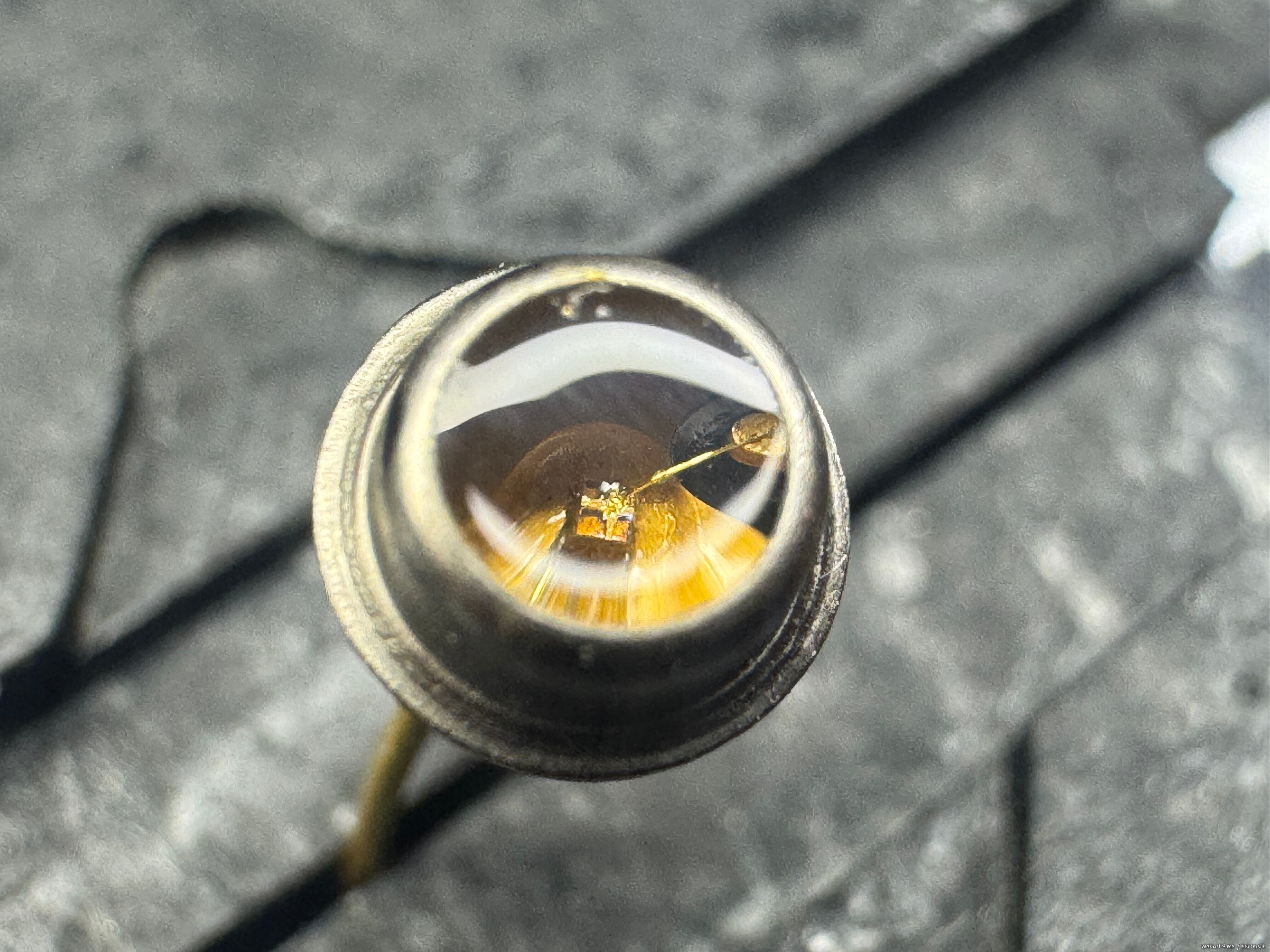

The 3L102V diodes are epitaxial gallium phosphide light-emitting diodes (LEDs).
Designed for visual indication in special-purpose equipment.

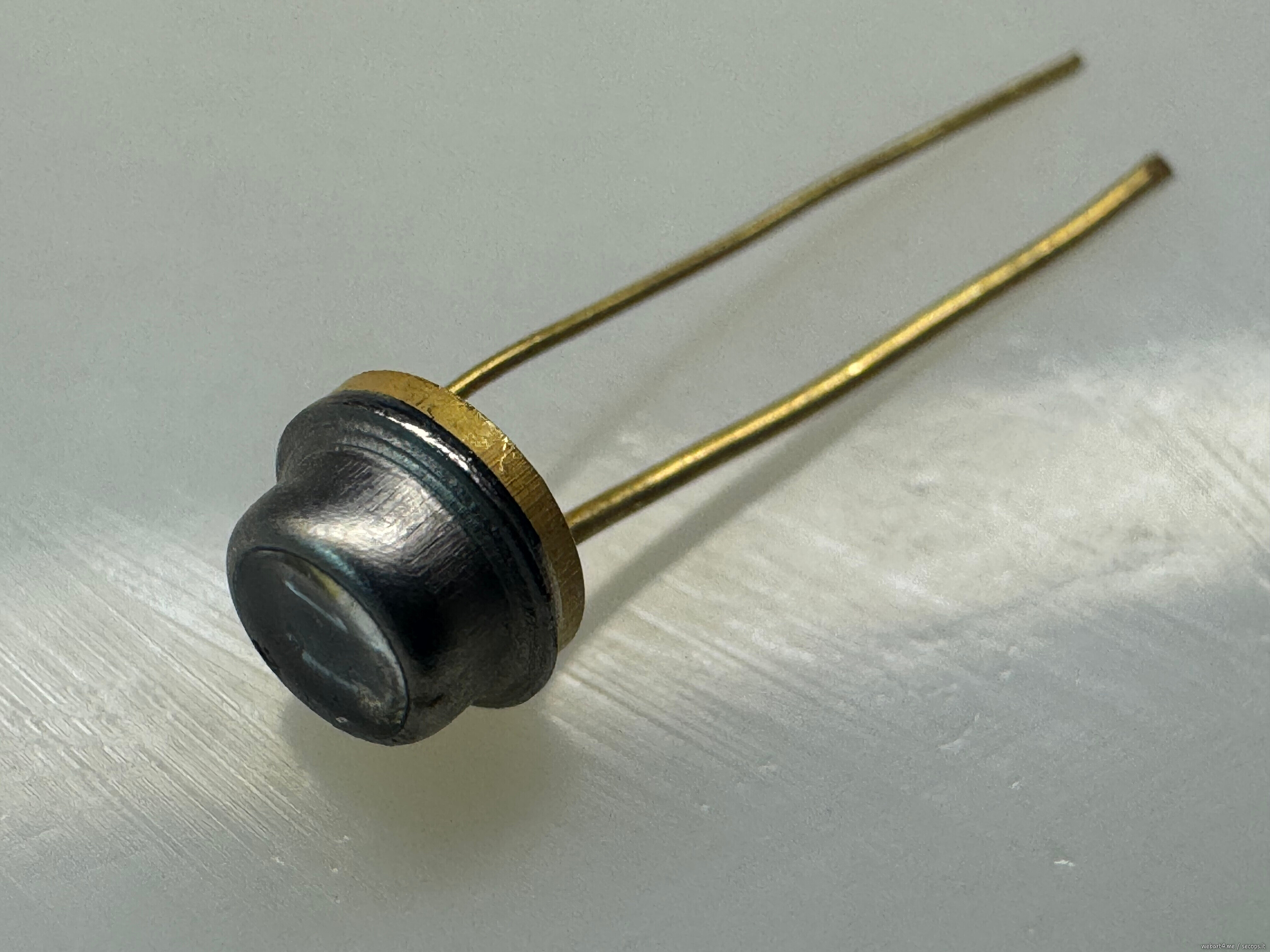

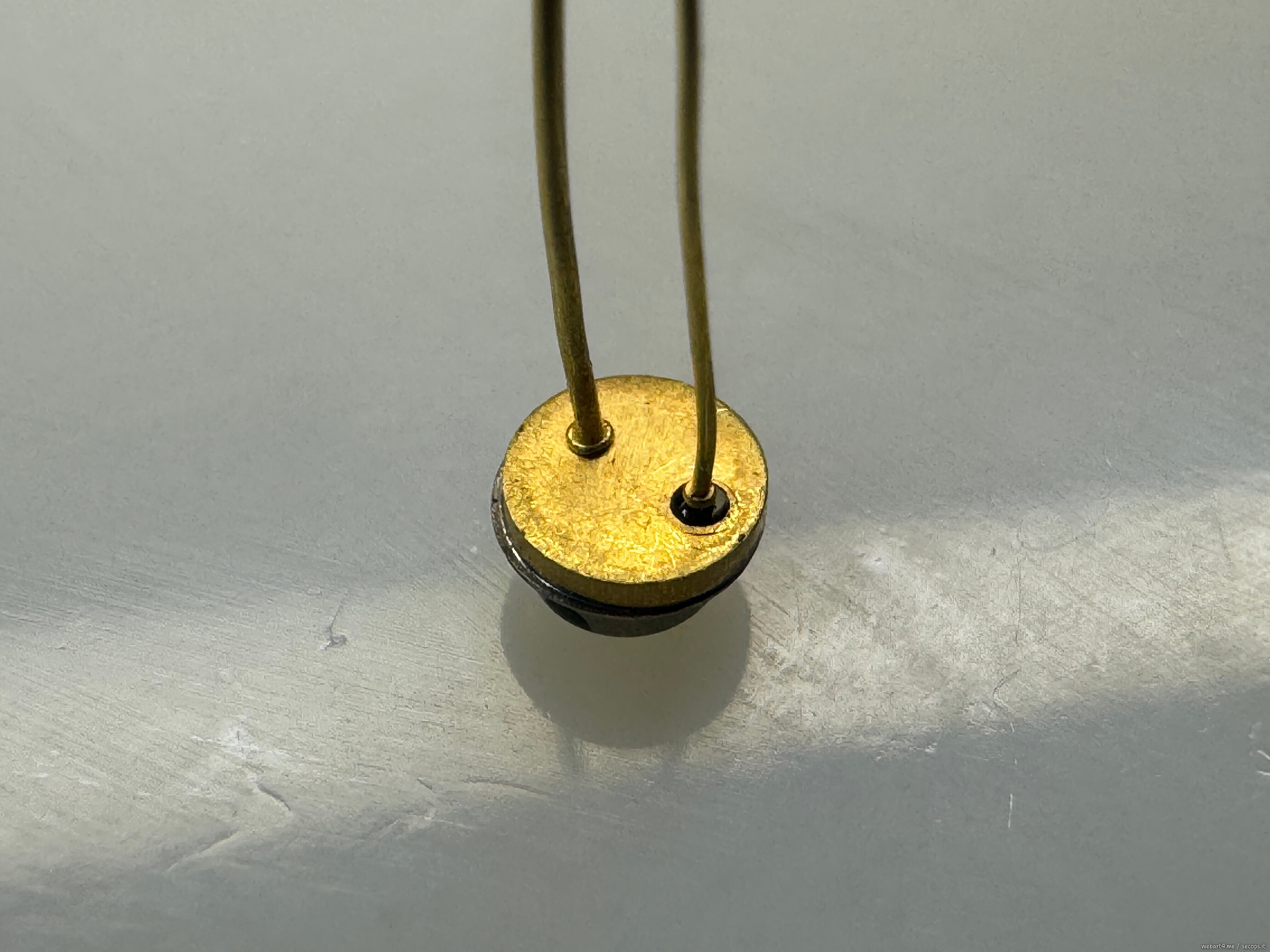

Produced in a metal-glass housing.

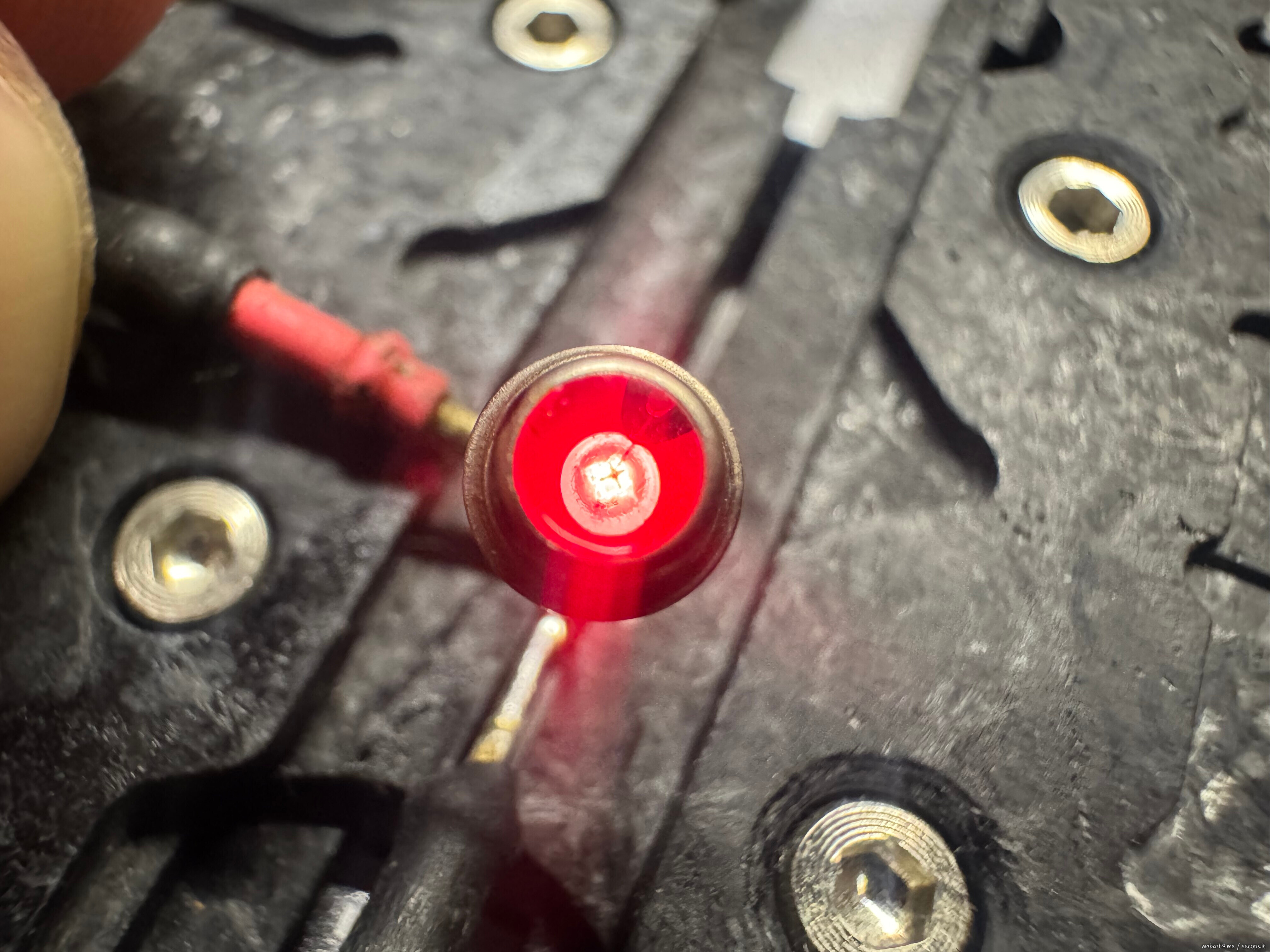

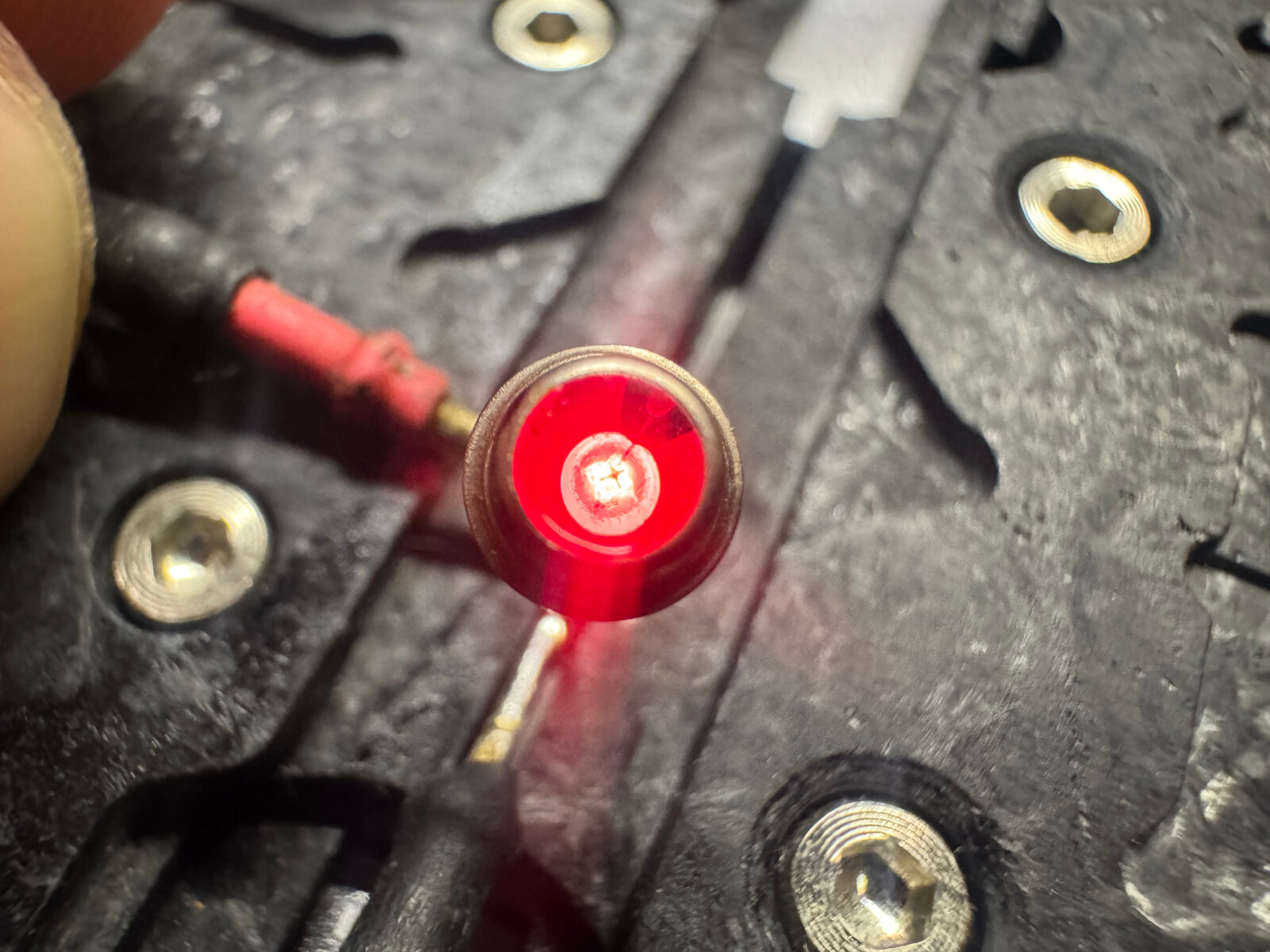

3Л102В 4032x3024 IMG_4892.jpg
3Л102В
3Л102В
3Л102В 4032x3024
3Л102В
3Л102В 4032x3024
3Л102В
3Л102В 4032x3024


Main technical parameters of the 3L102V LED:

  • Mass: not more than 0.25 g
  • Luminous intensity: not less than 0.25 cd/m²
  • DC forward voltage: not more than 2.8 V
  • Peak spectral distribution: 0.56 μm (560 nm)
  • Maximum permissible DC forward current: 20 mA
  • Maximum pulse current (at specified pulse duration): 60 mA at 2 ms
  • Maximum permissible DC reverse voltage: 2 V
  • Maximum permissible pulse DC reverse voltage: 2 V
