Installing thermal pads on SSD Samsung 870

/en/photo/techno/ 870evo
12/October/2025
authorRentaro
Rentaro

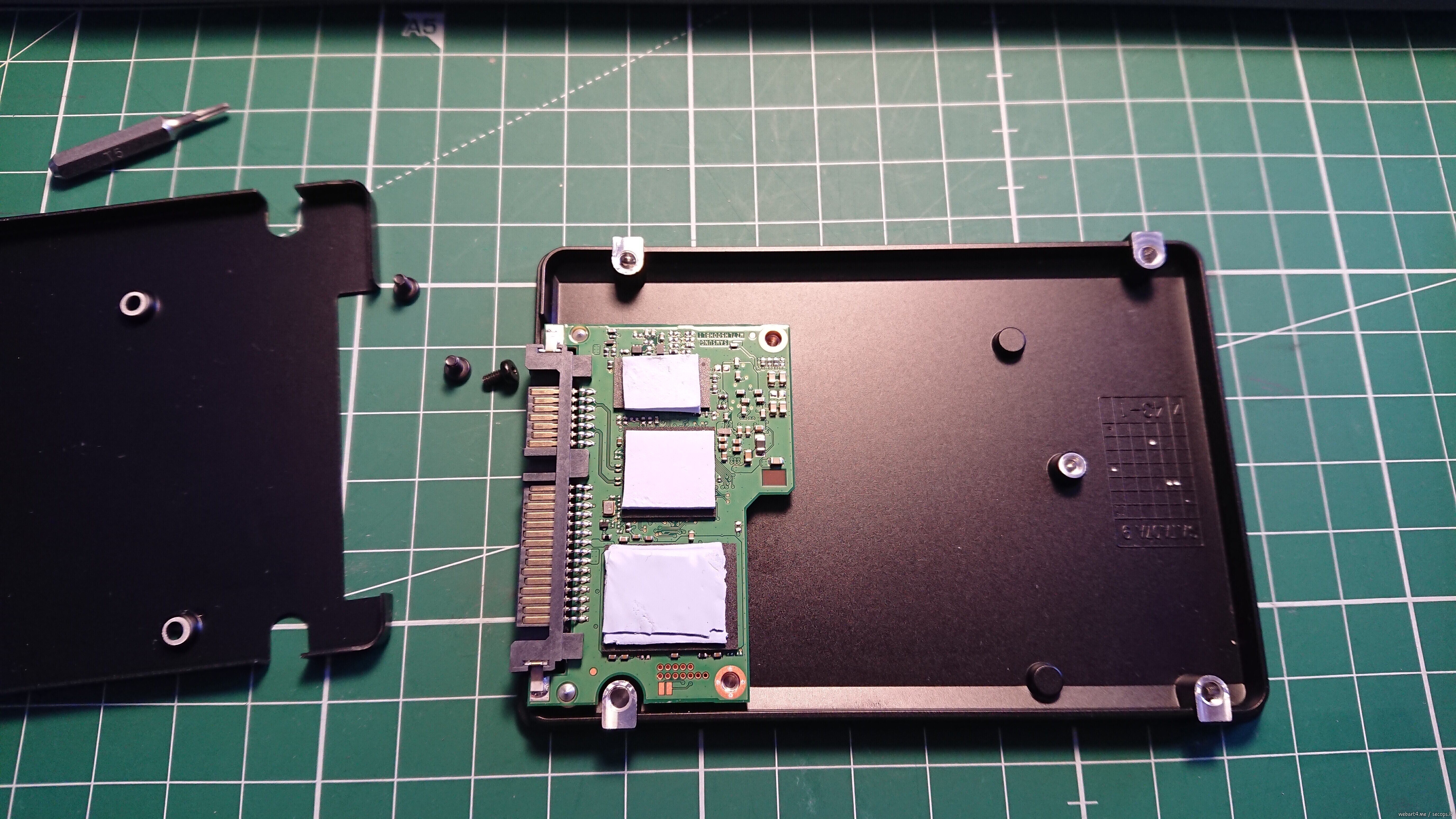

Checking the thickness of thermal pads ARCTIC TP-3 5504x3096 870_20251008_155721.jpg
Checking the thickness of thermal pads ARCTIC TP-3


Testing the thickness of thermal pads for SSD chips.

Thermal pads of different thicknesses can be used to select the best contact with the housing.
If it’s difficult to find the perfect contact, you can add ARCTIC MX-4 thermal paste, it’s softer than MX-6.

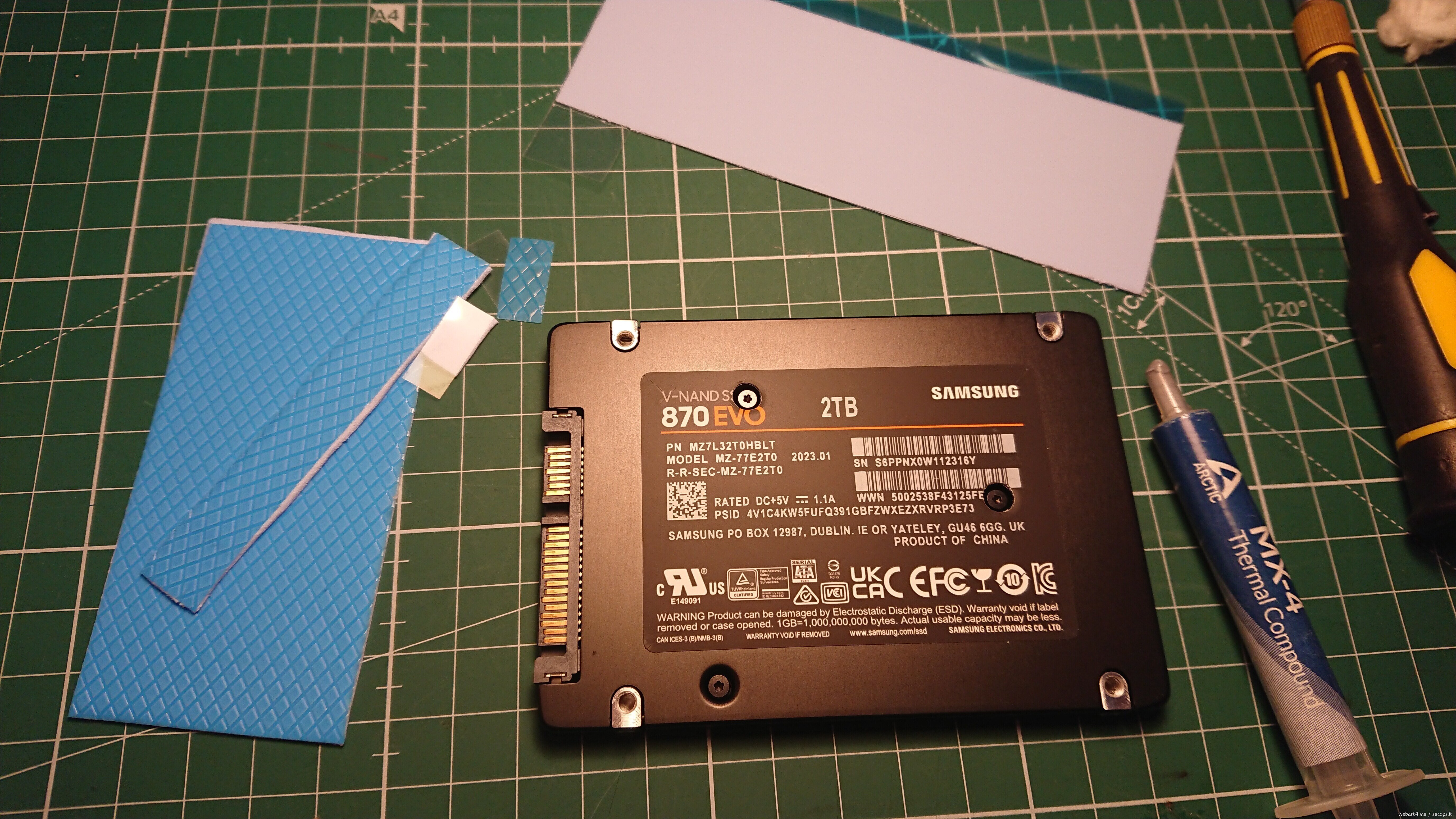

Samsung 870 EVO
Samsung 870 EVO 5504x3096

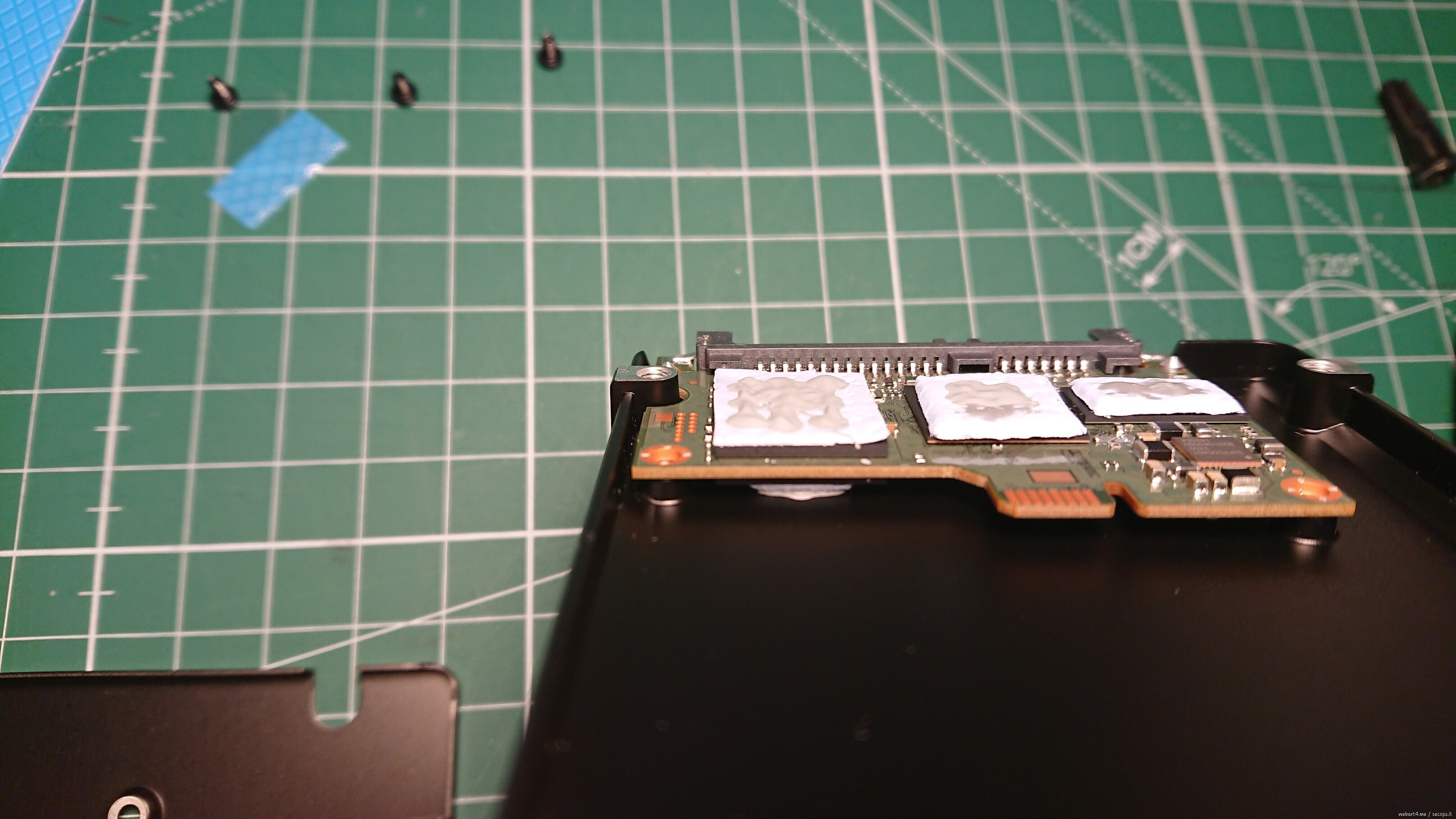

Contact patch
Contact patch 5504x3096

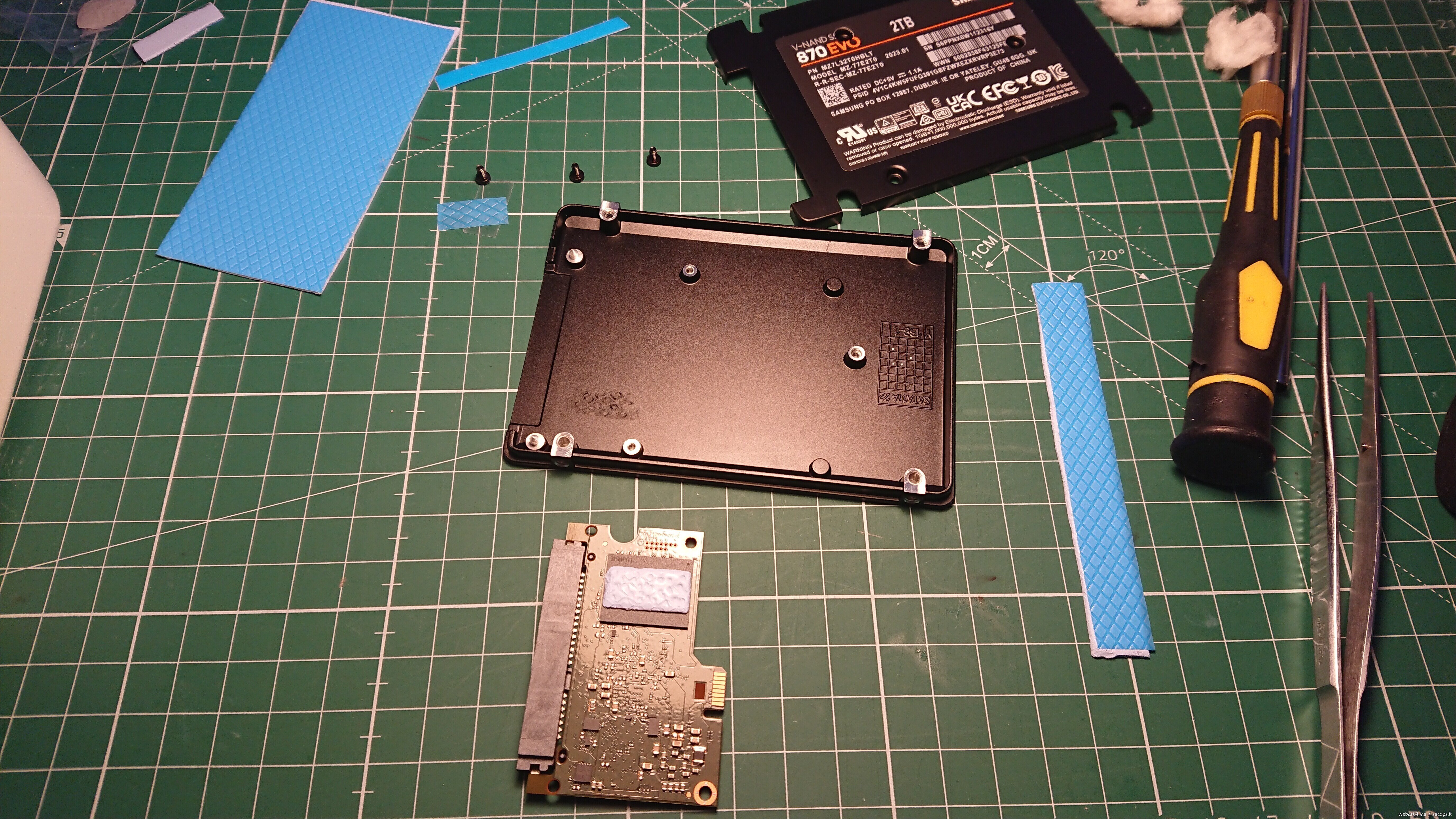

Adding thermal paste
Adding thermal paste 5504x3096

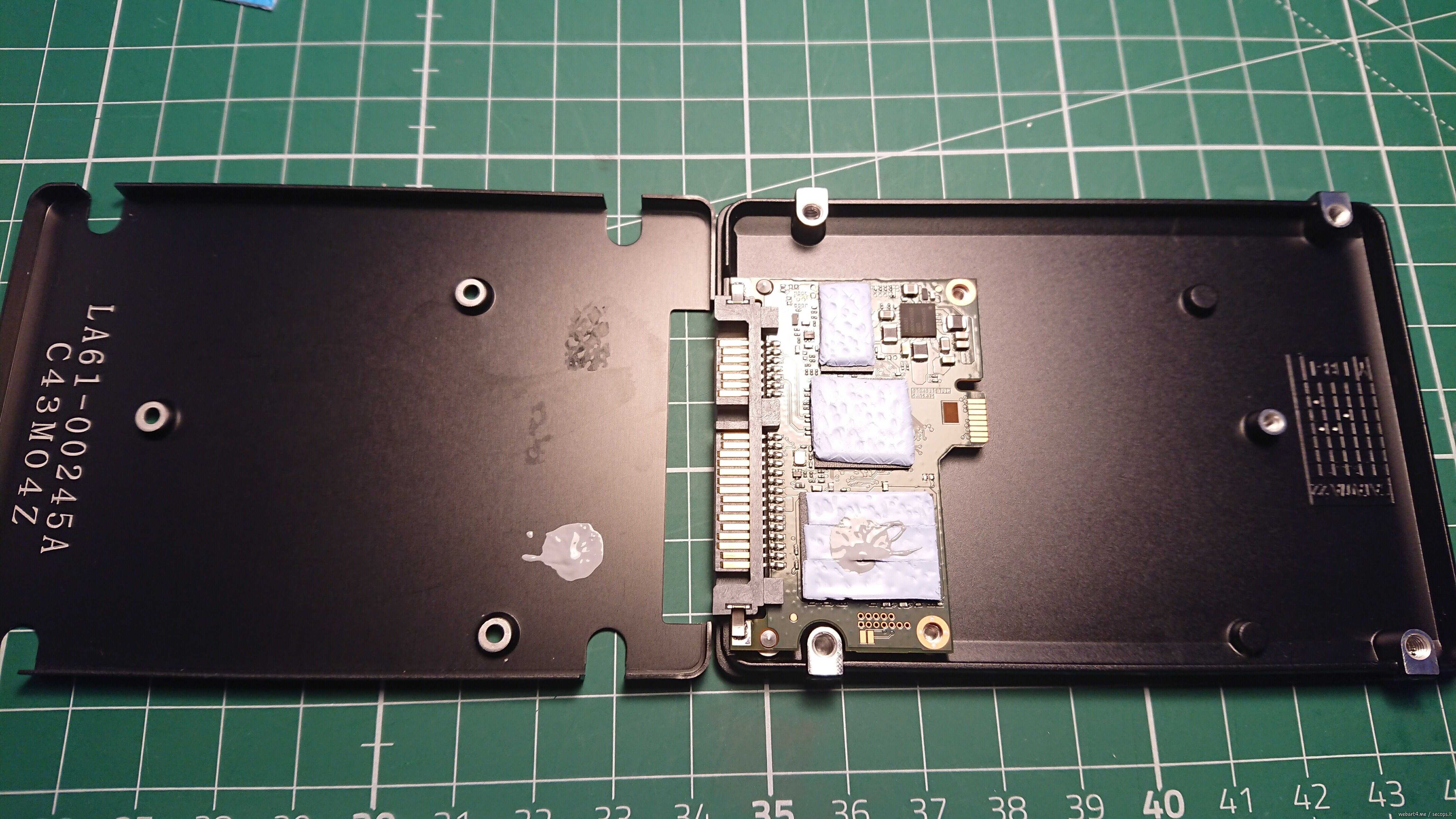

Thermal paste contact
Thermal paste contact 5504x3096

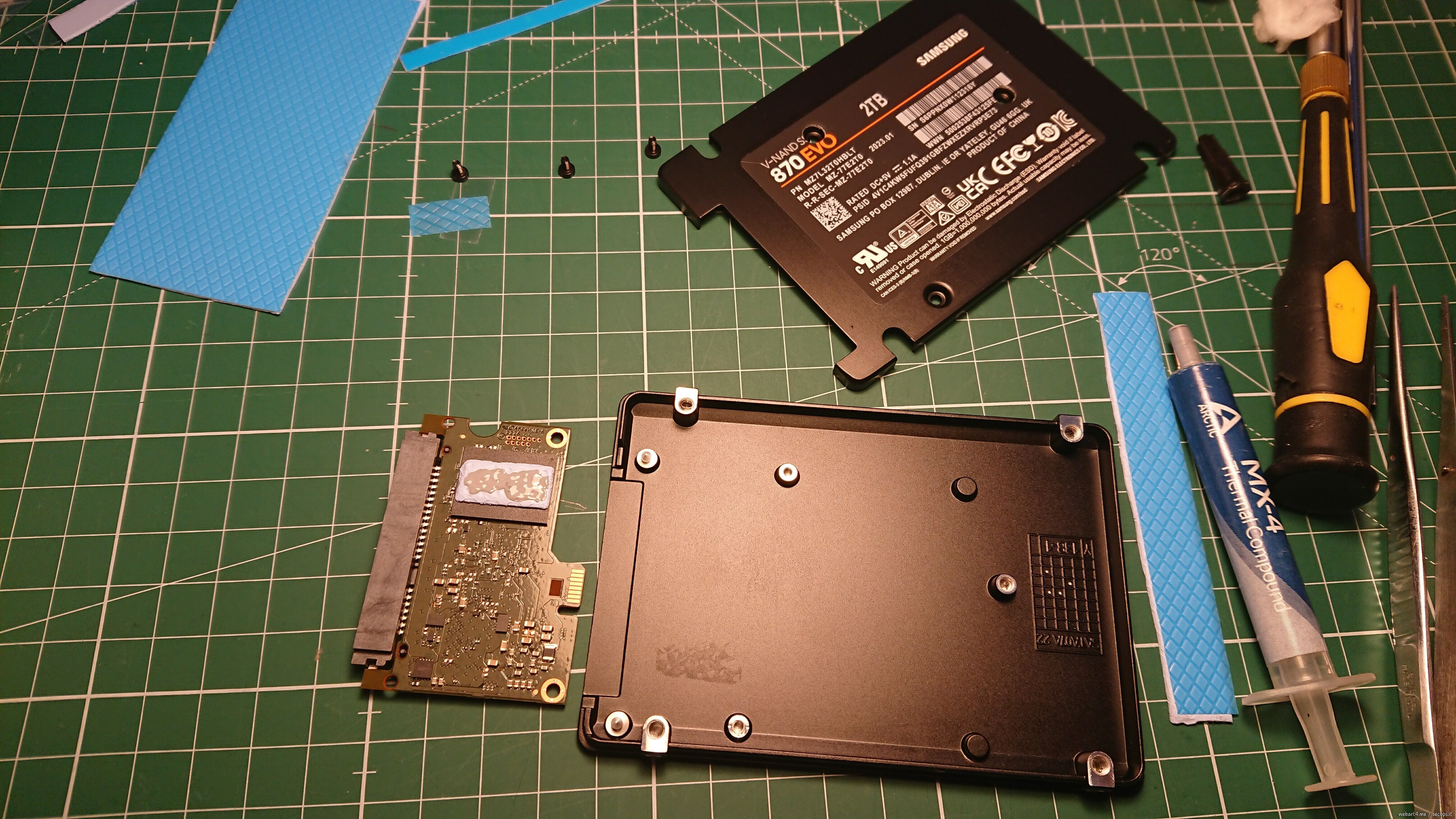

Thermal compound
Thermal compound 5504x3096

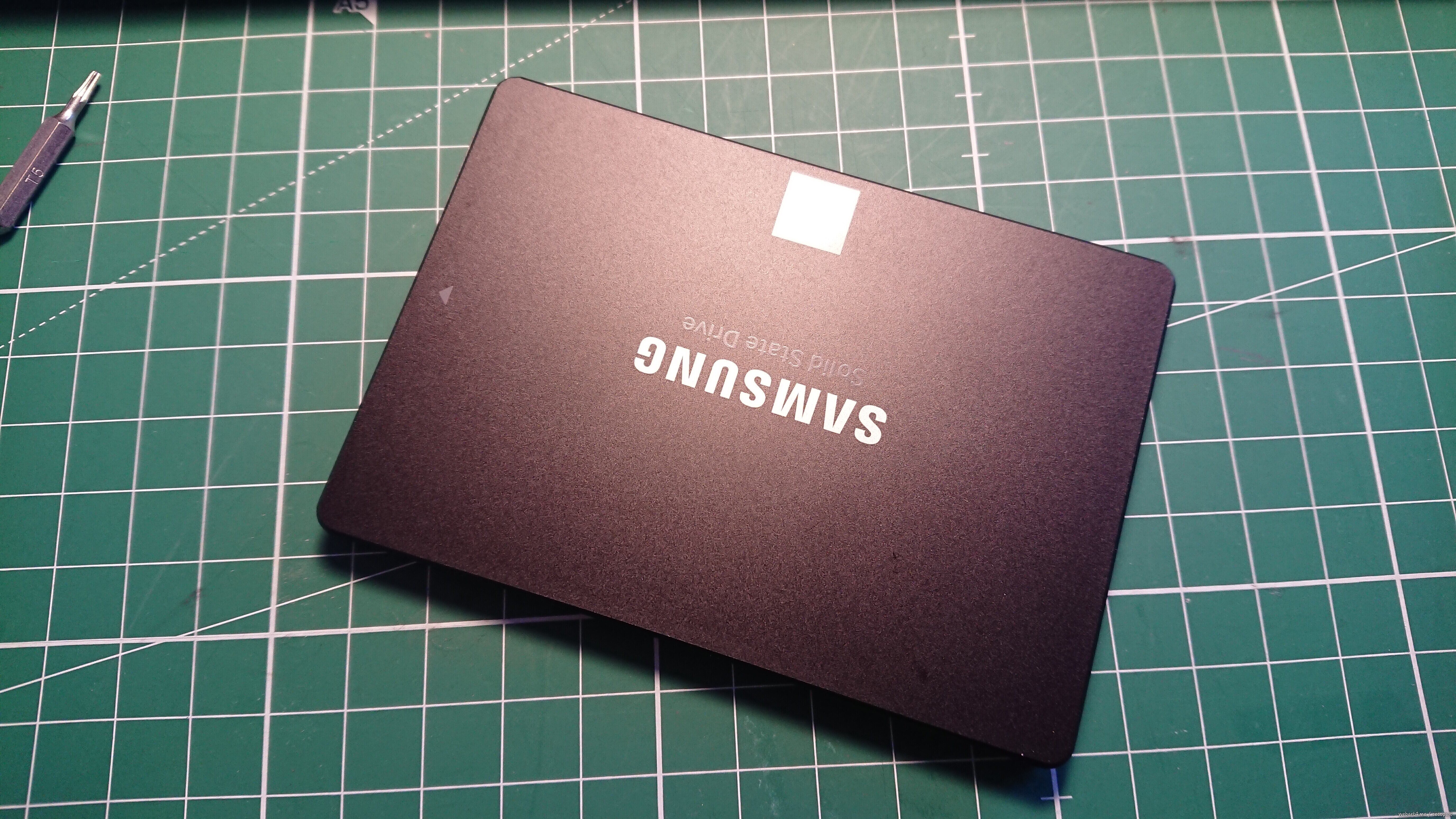

In assembly
In assembly 5504x3096
