Xperia XZ1 Battery Replacement

/en/photo/techno/ xperiasony
19/August/2026
authorRentaro
Rentaro

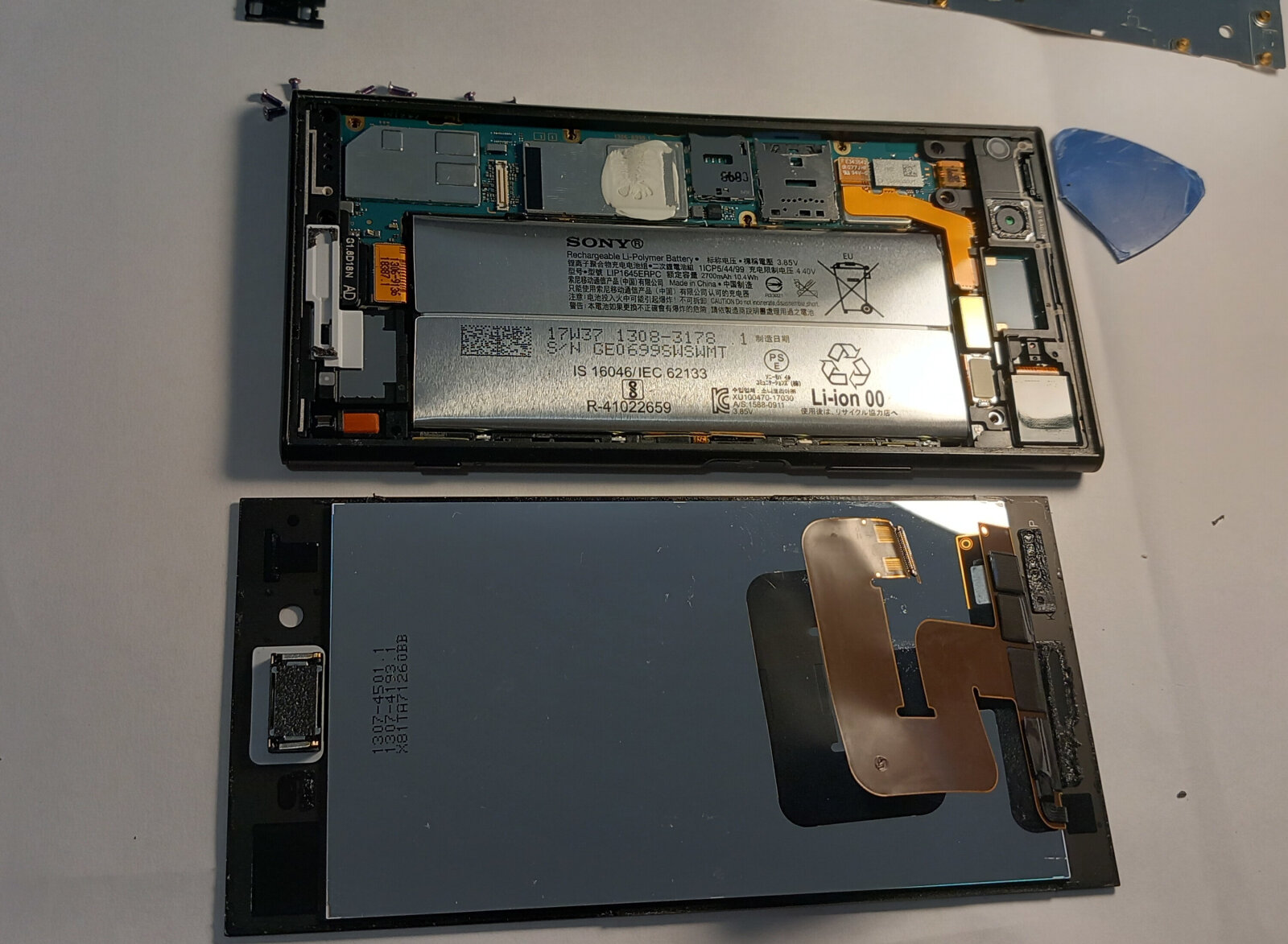

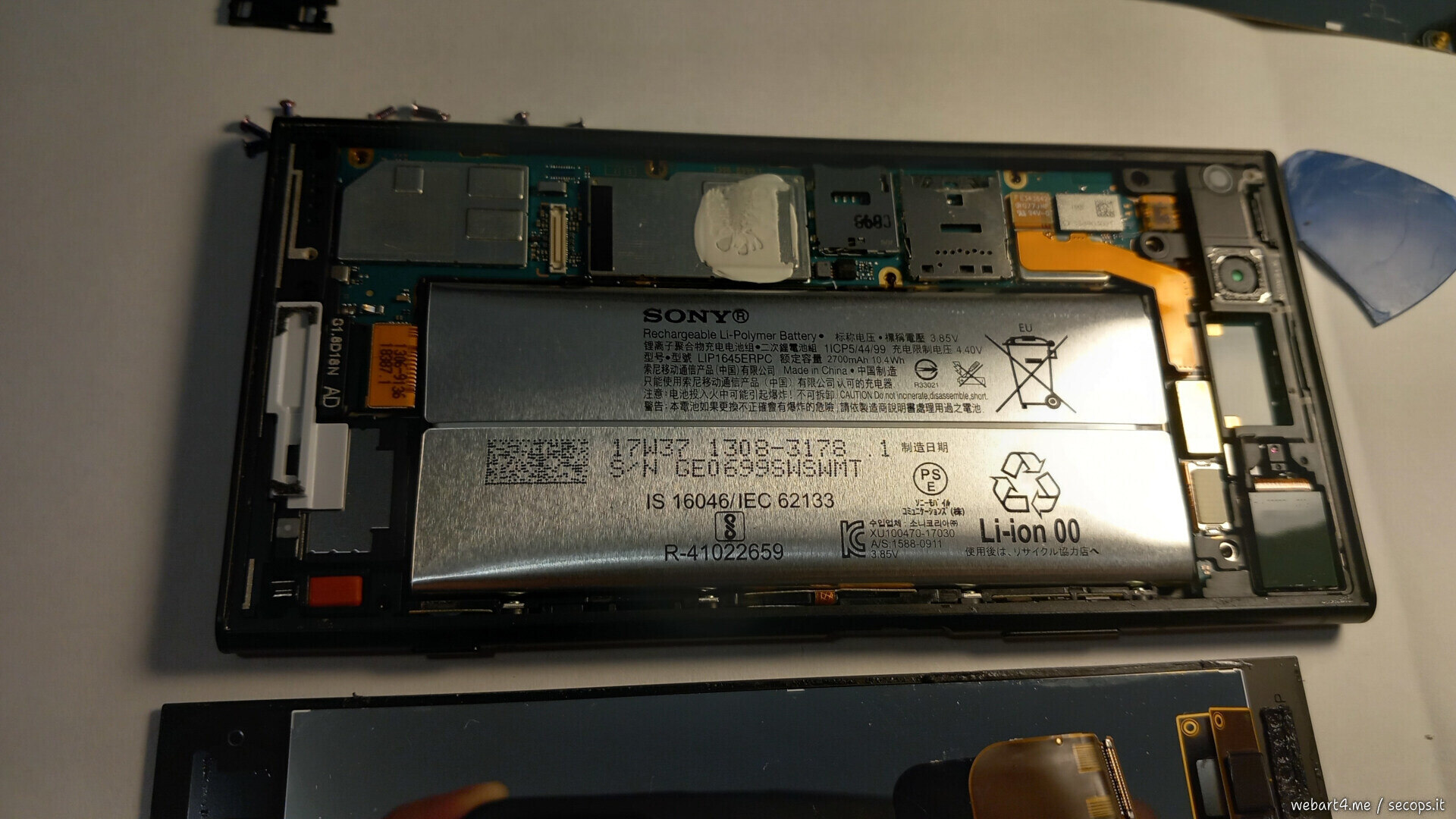

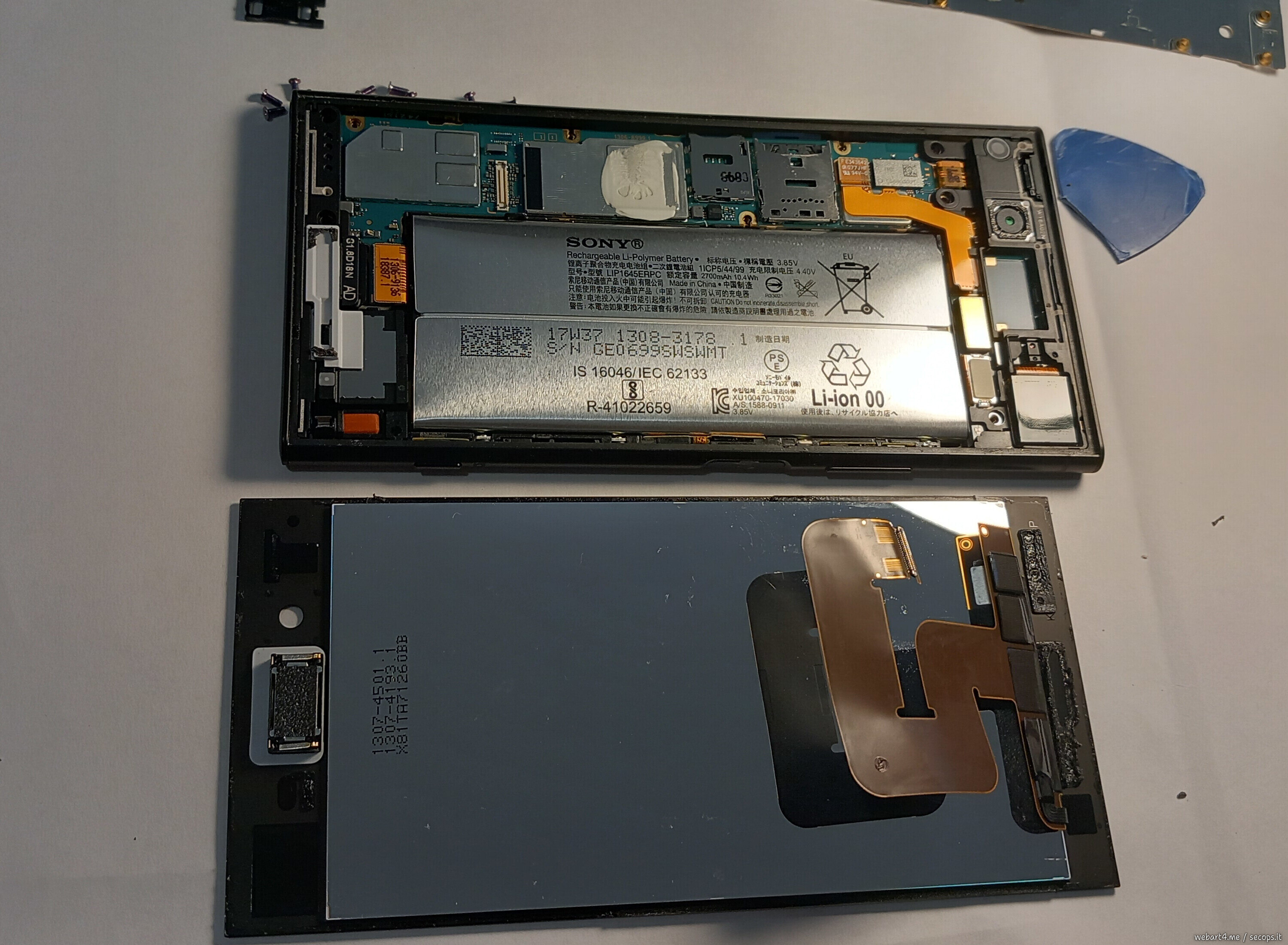

Preliminary inspection 3000x2200 1000037619.jpg
Preliminary inspection

The battery is a bit worn out and has swollen.
I need to get it replaced ASAP.

New battery
New battery 1920x1080

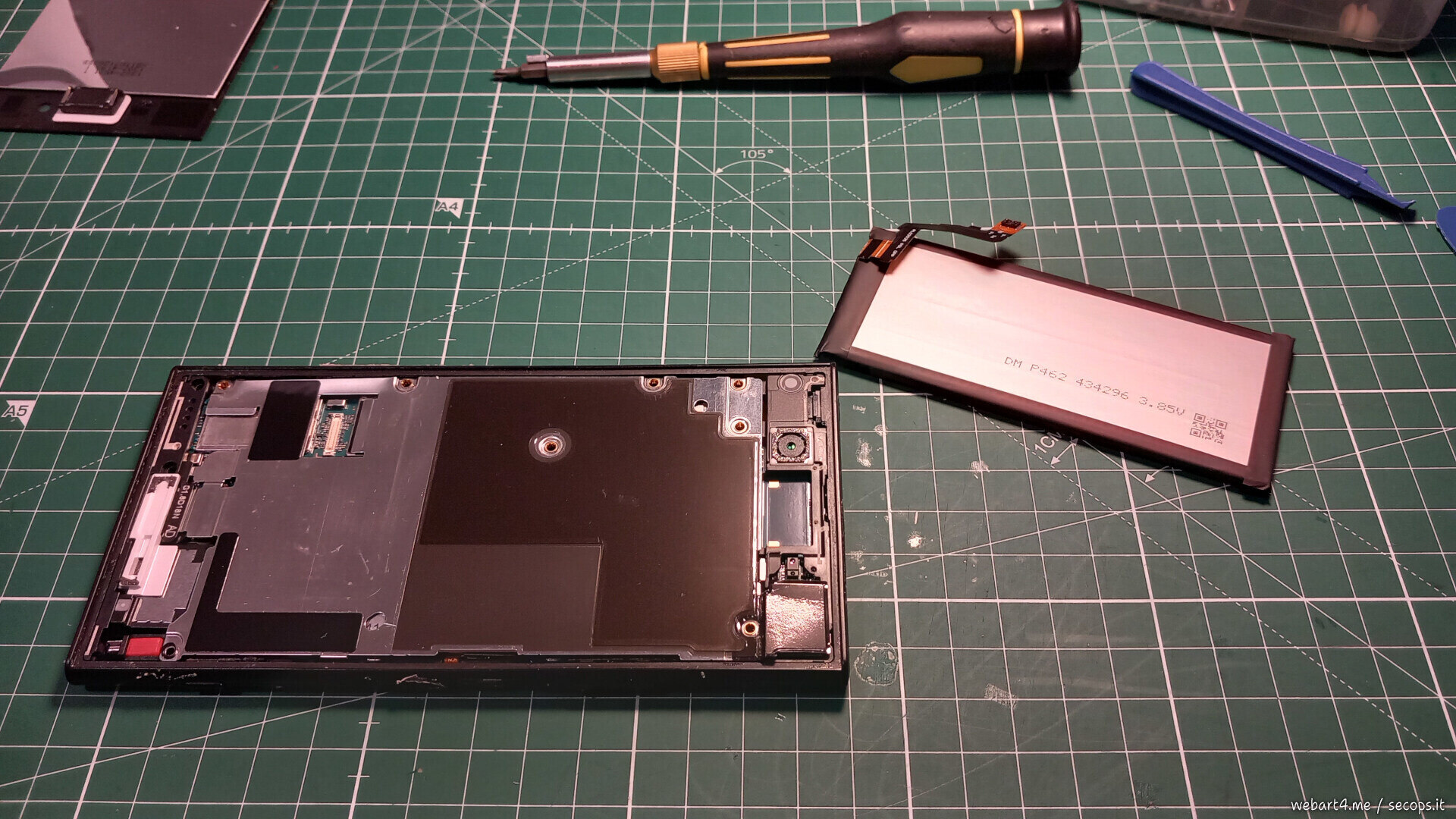

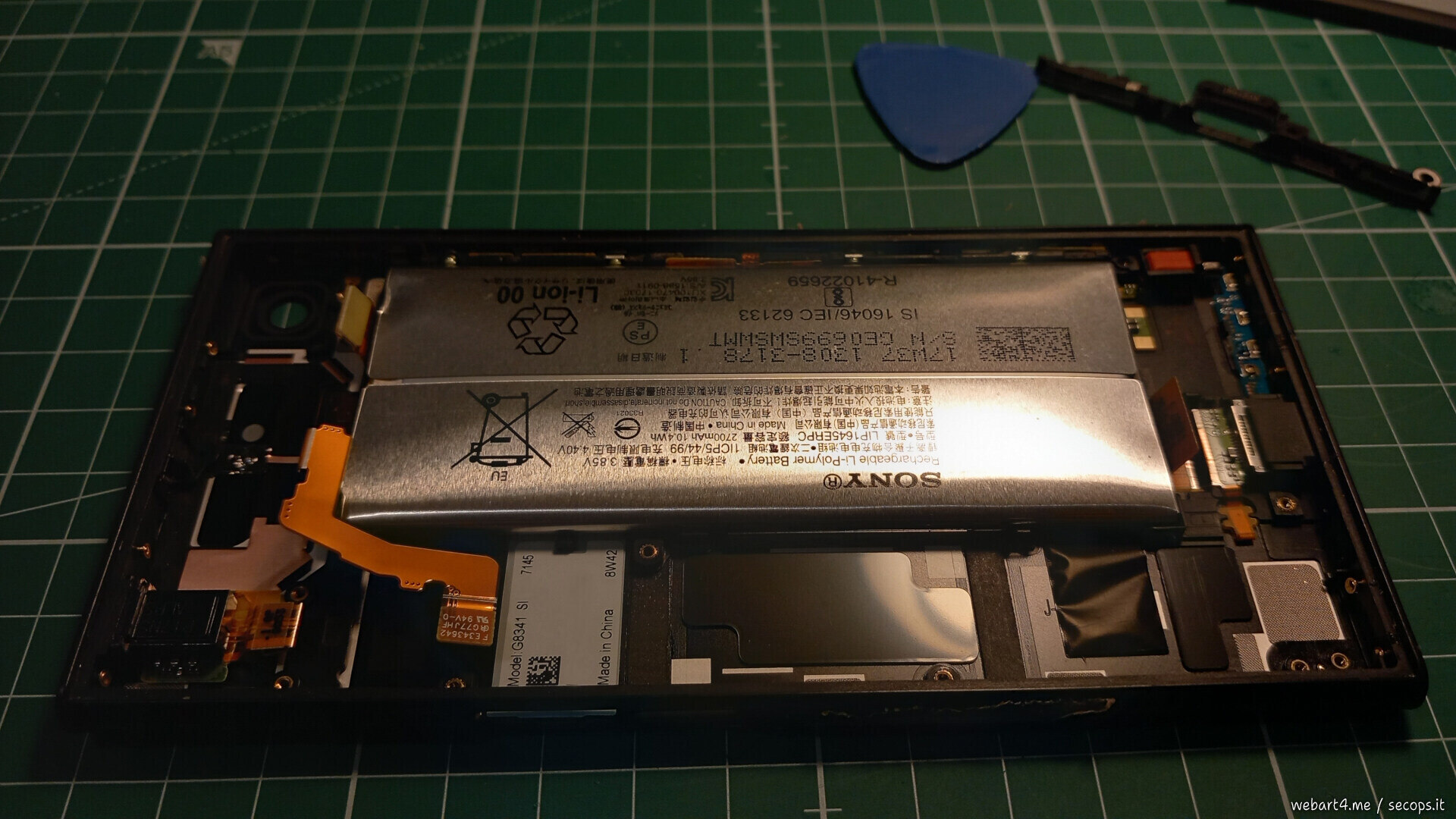

Old battery
Old battery 1920x1080
Old battery
Old battery 1920x1080

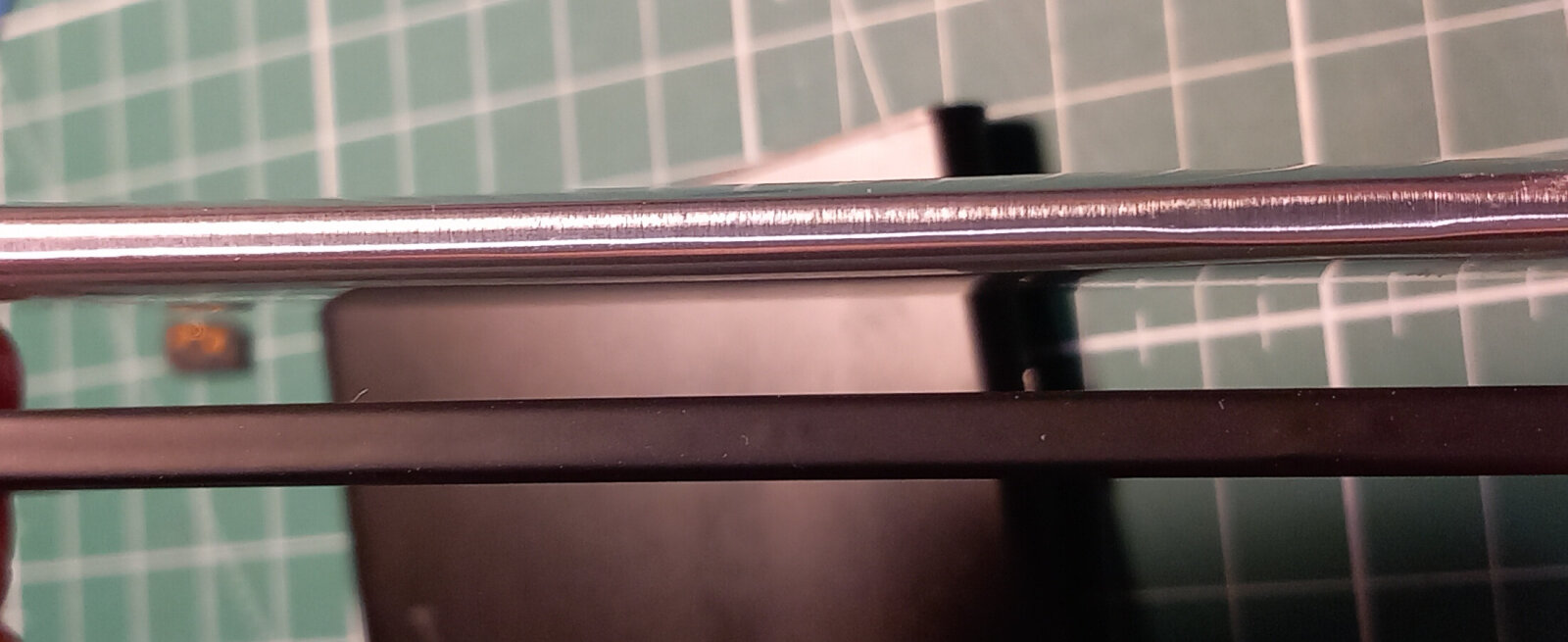

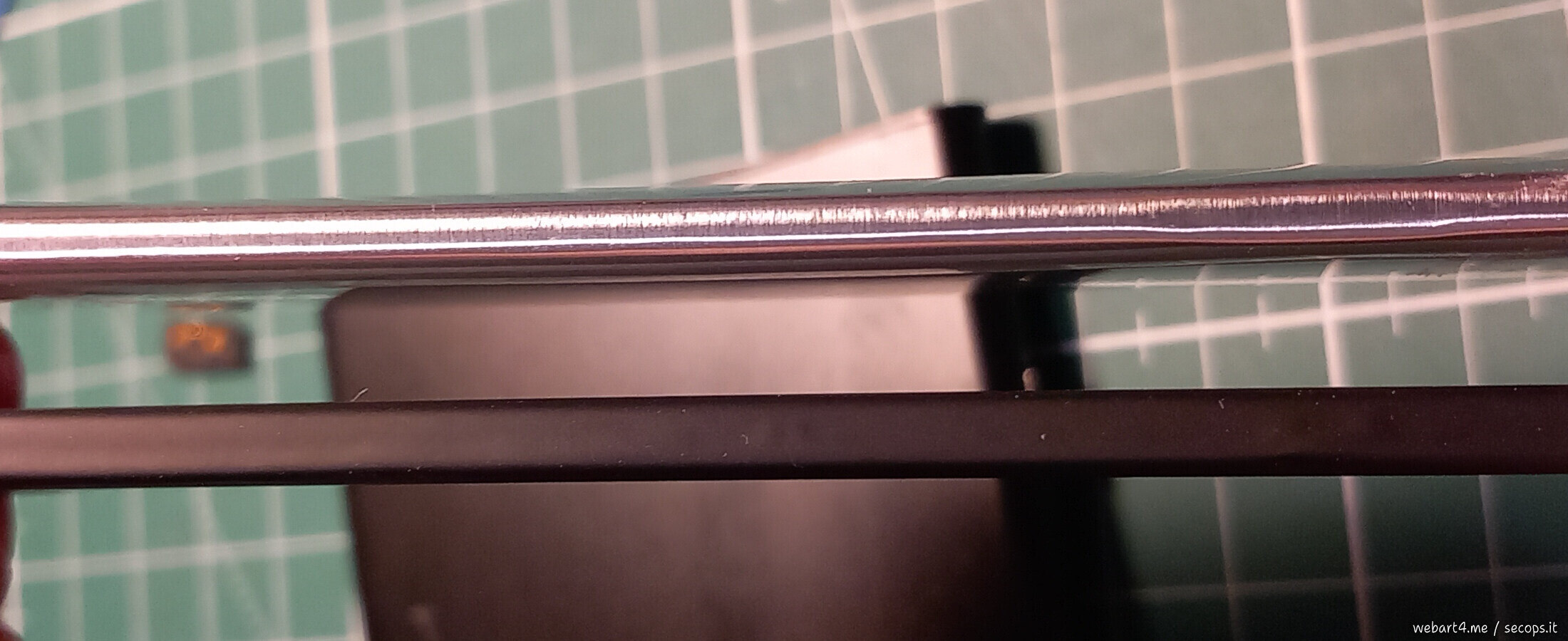

Comparison: old vs. new. The one on top is thicker because it’s swollen, which almost damaged the screen.

Top: old battery / Bottom: new battery 2200x900 20260812_195600.jpg

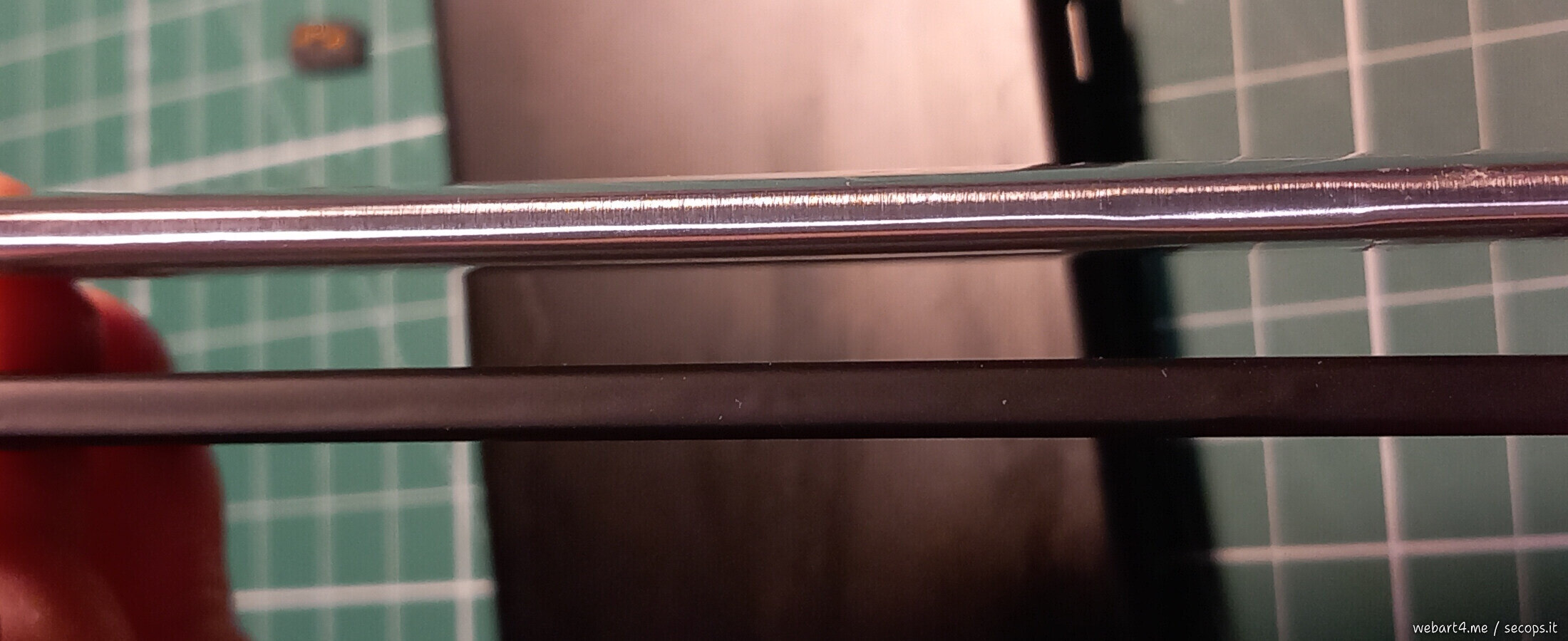

Top: old battery / Bottom: new battery

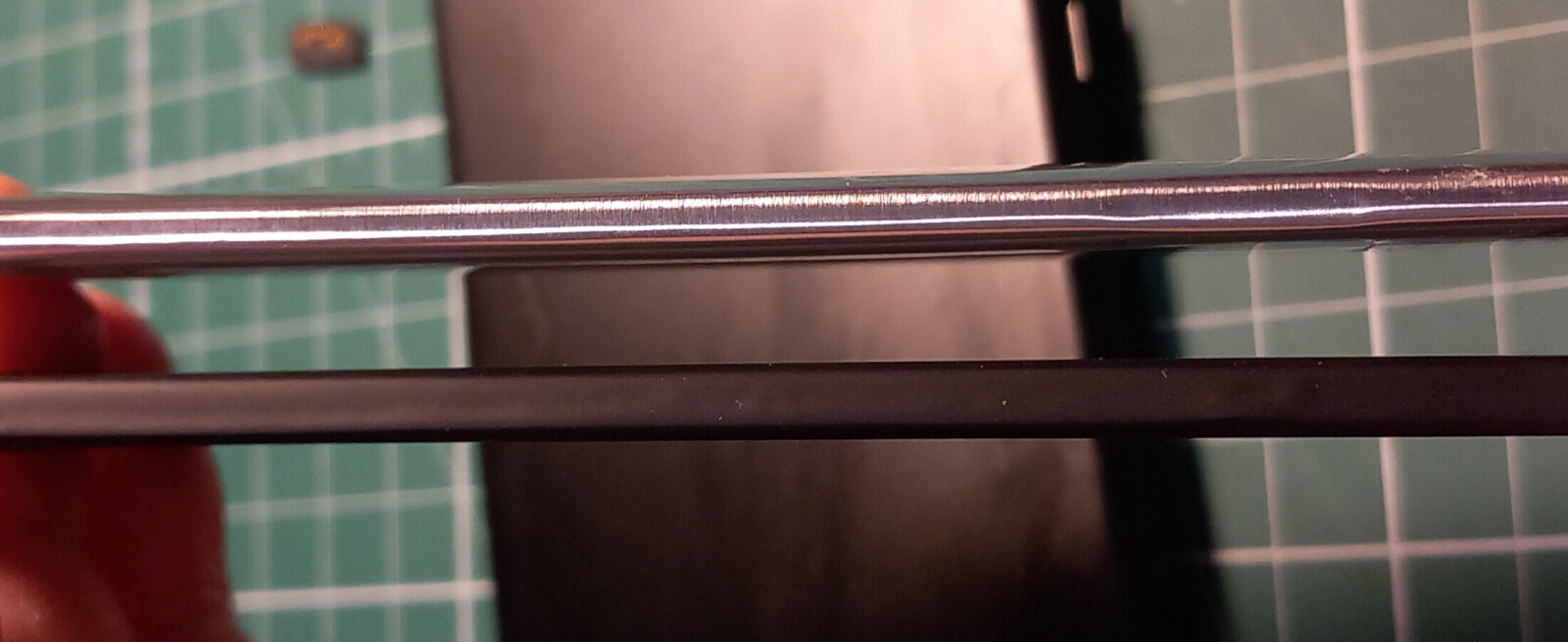

Top: old battery / Bottom: new battery 2200x900 20260812_195611.jpg
Top: old battery / Bottom: new battery

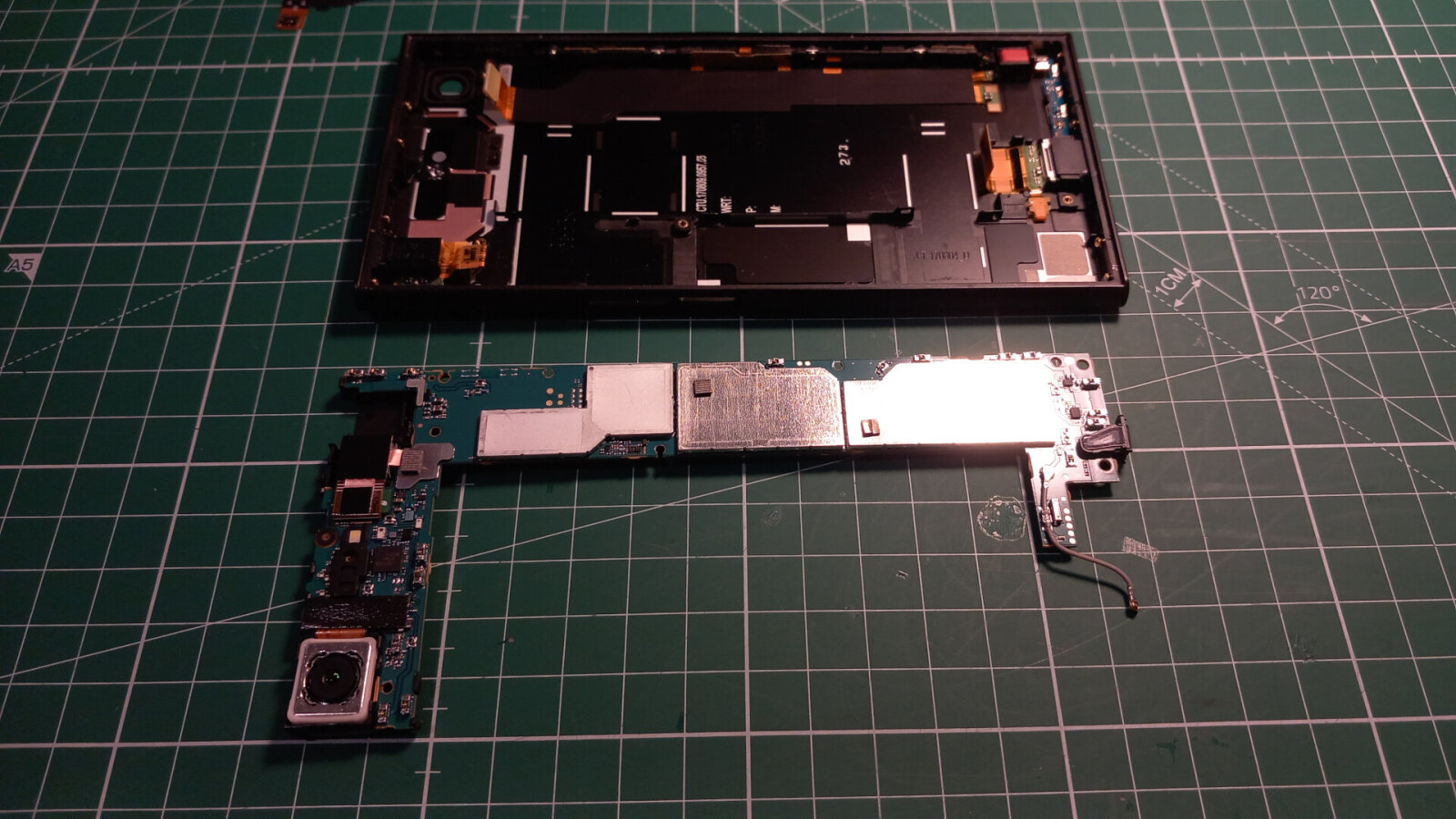

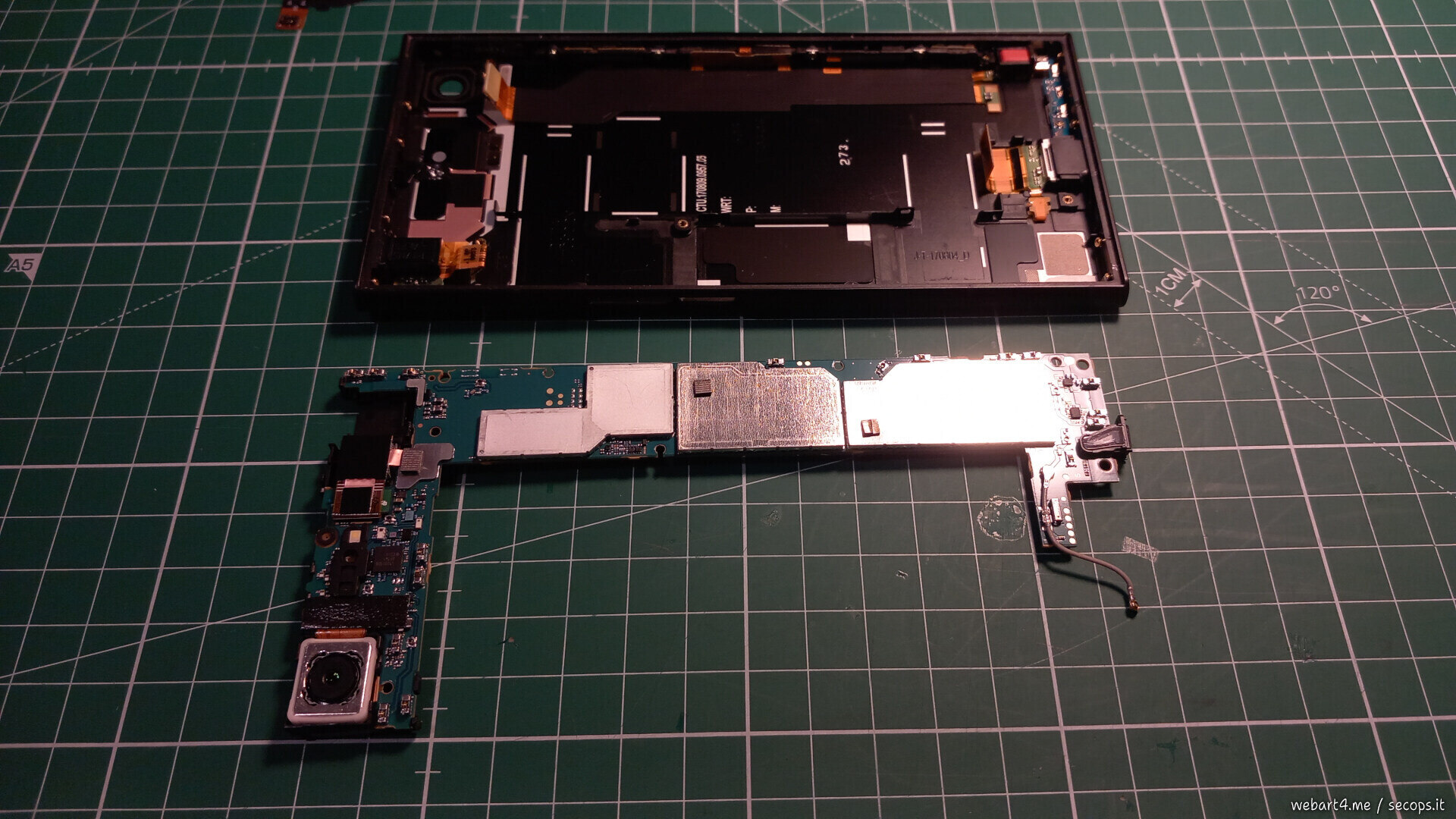

XZ1 Mainboard
XZ1 Mainboard 1920x1080
XZ1 Mainboard
XZ1 Mainboard 1920x1080

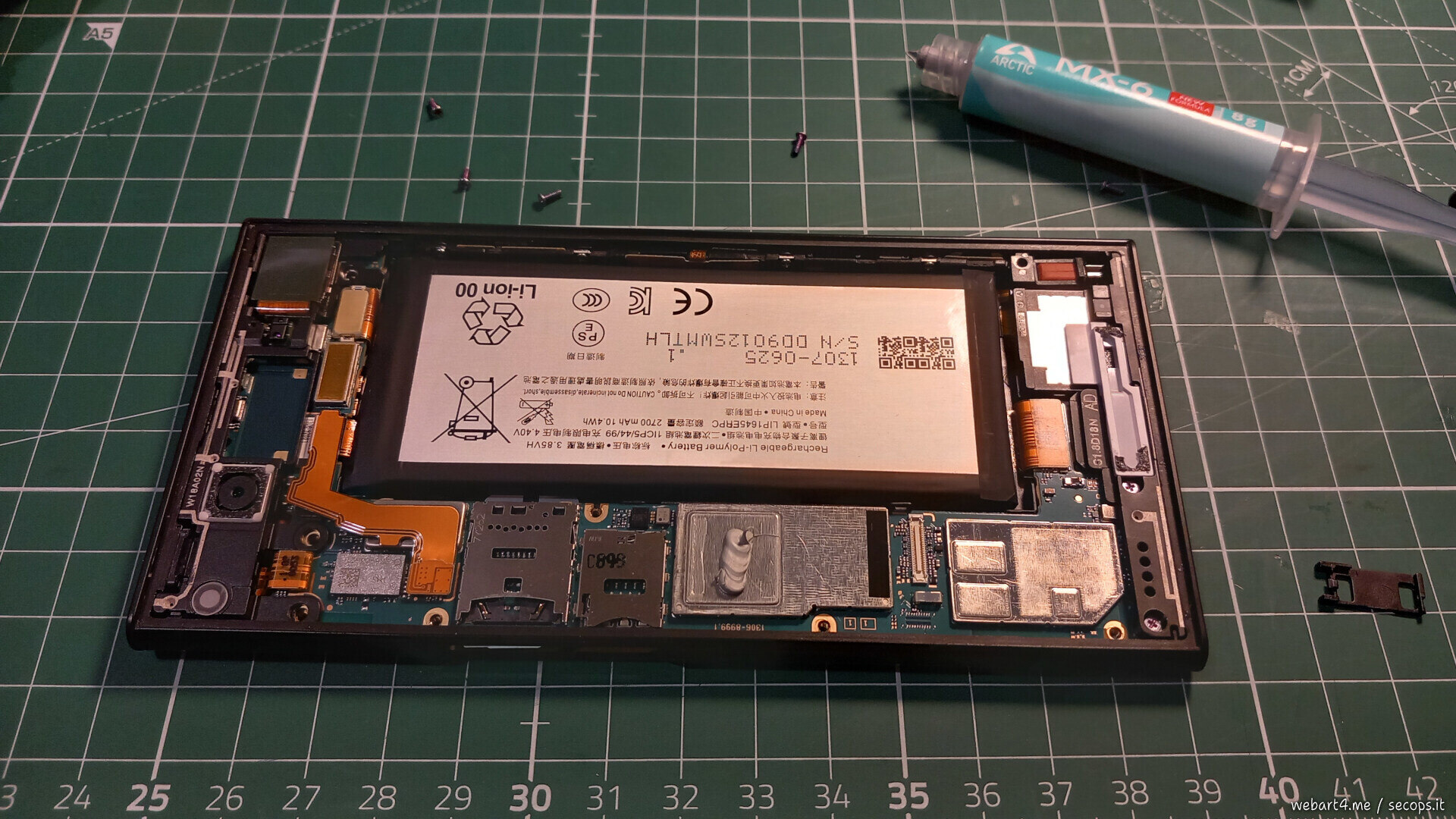

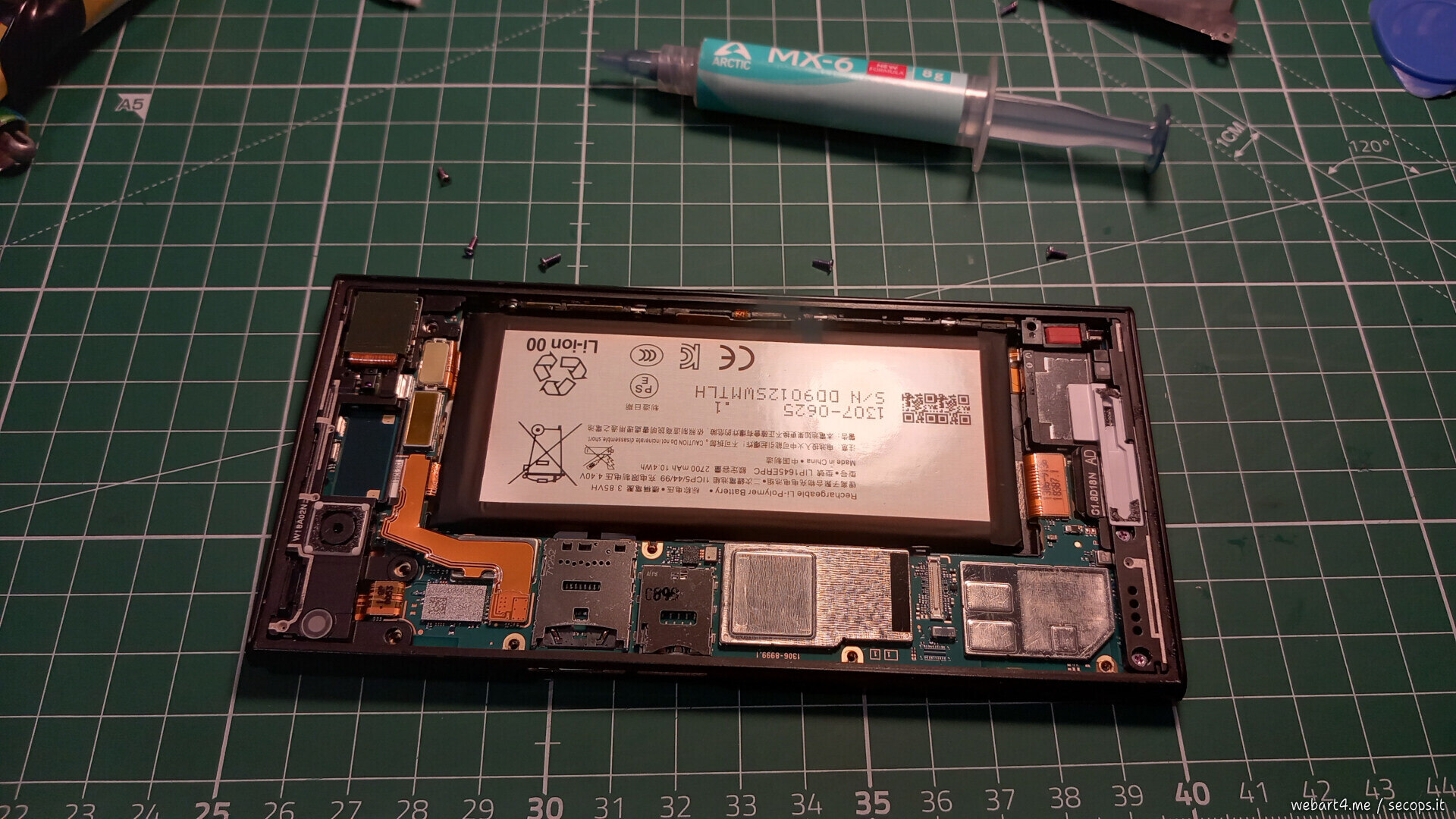

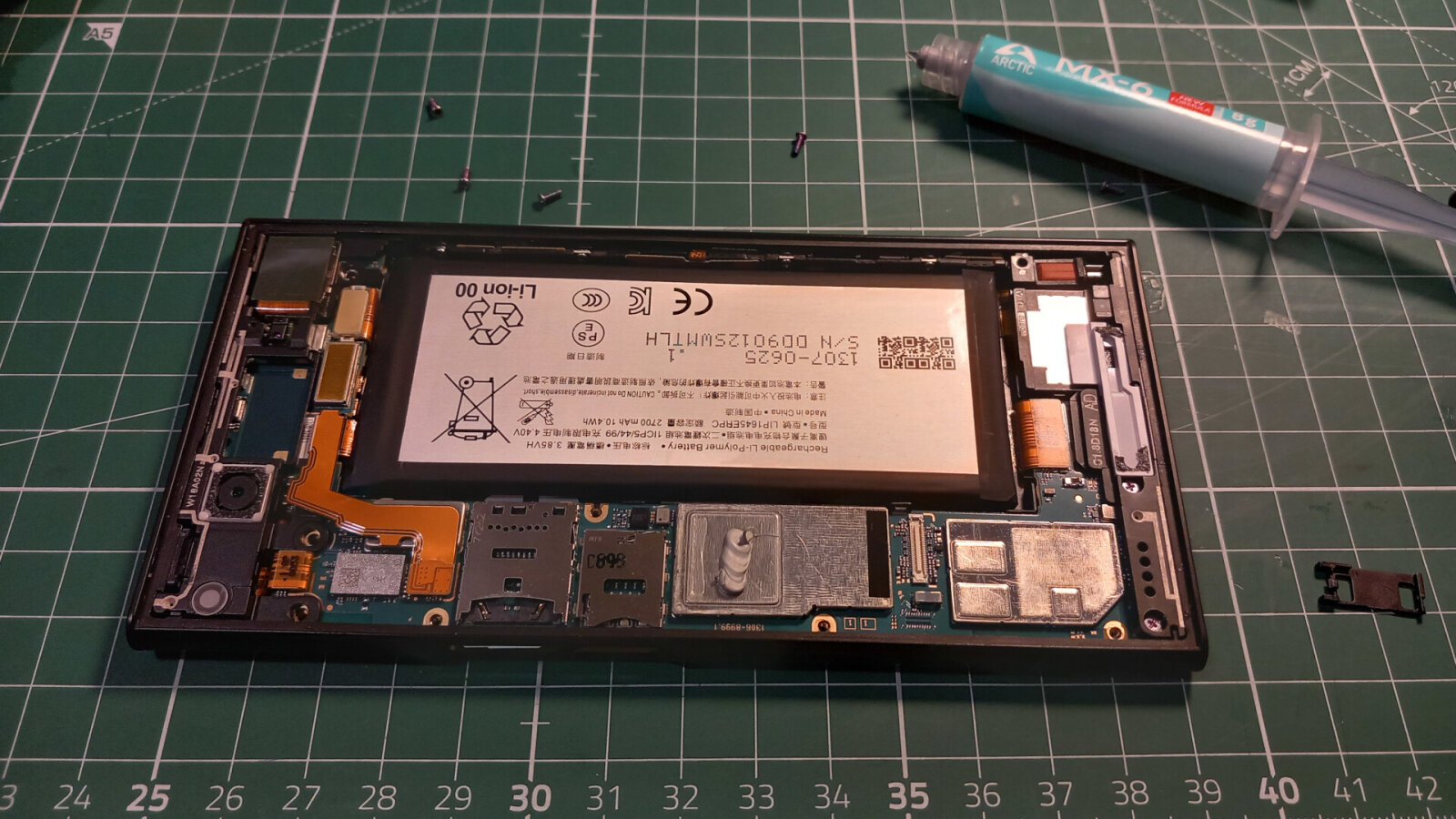

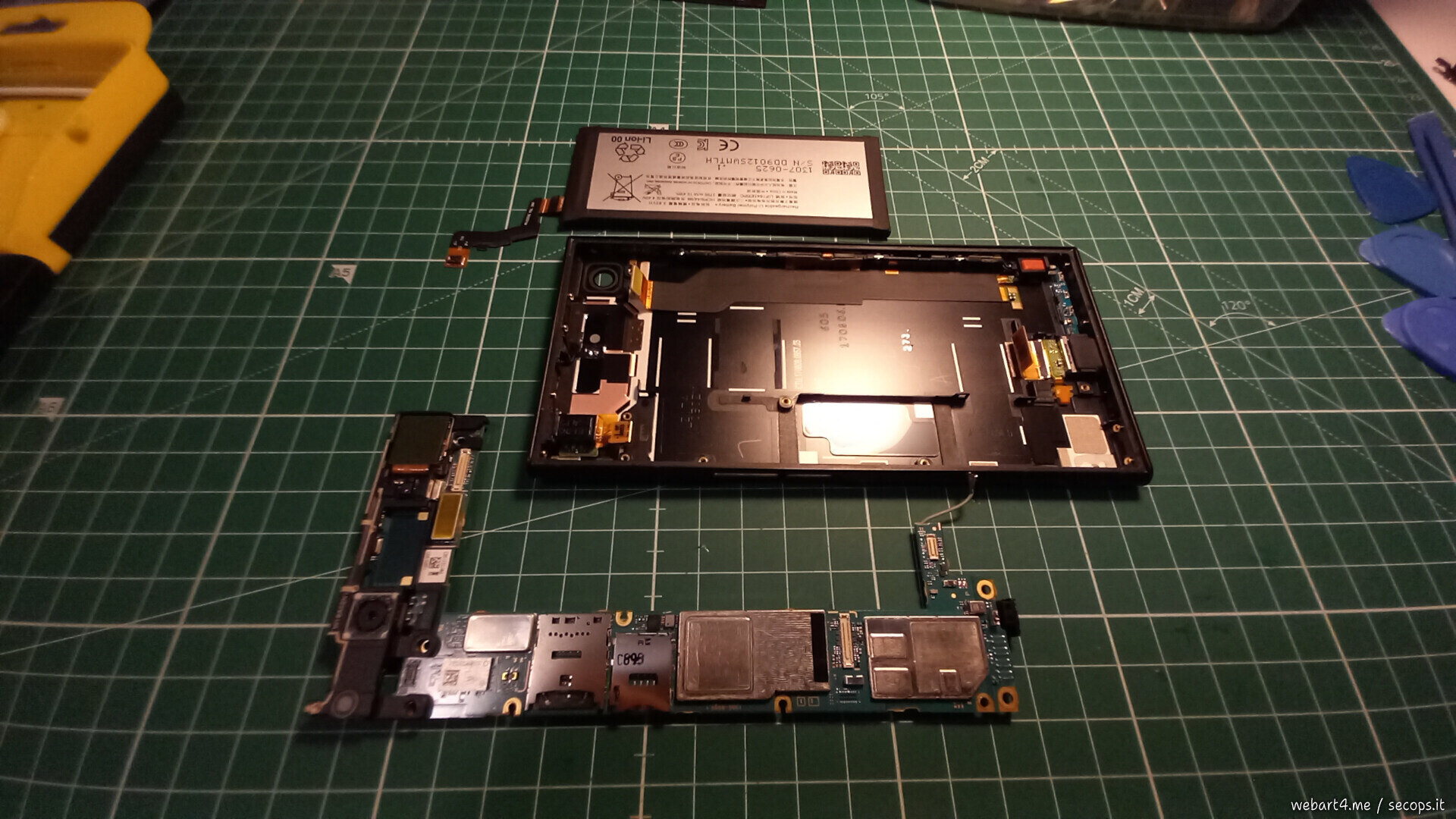

Pre-assembly
Pre-assembly 1920x1080

Putting some fresh thermal paste on the processor to replace the old stuff.

Thermal paste MX-6
Thermal paste MX-6 1920x1080

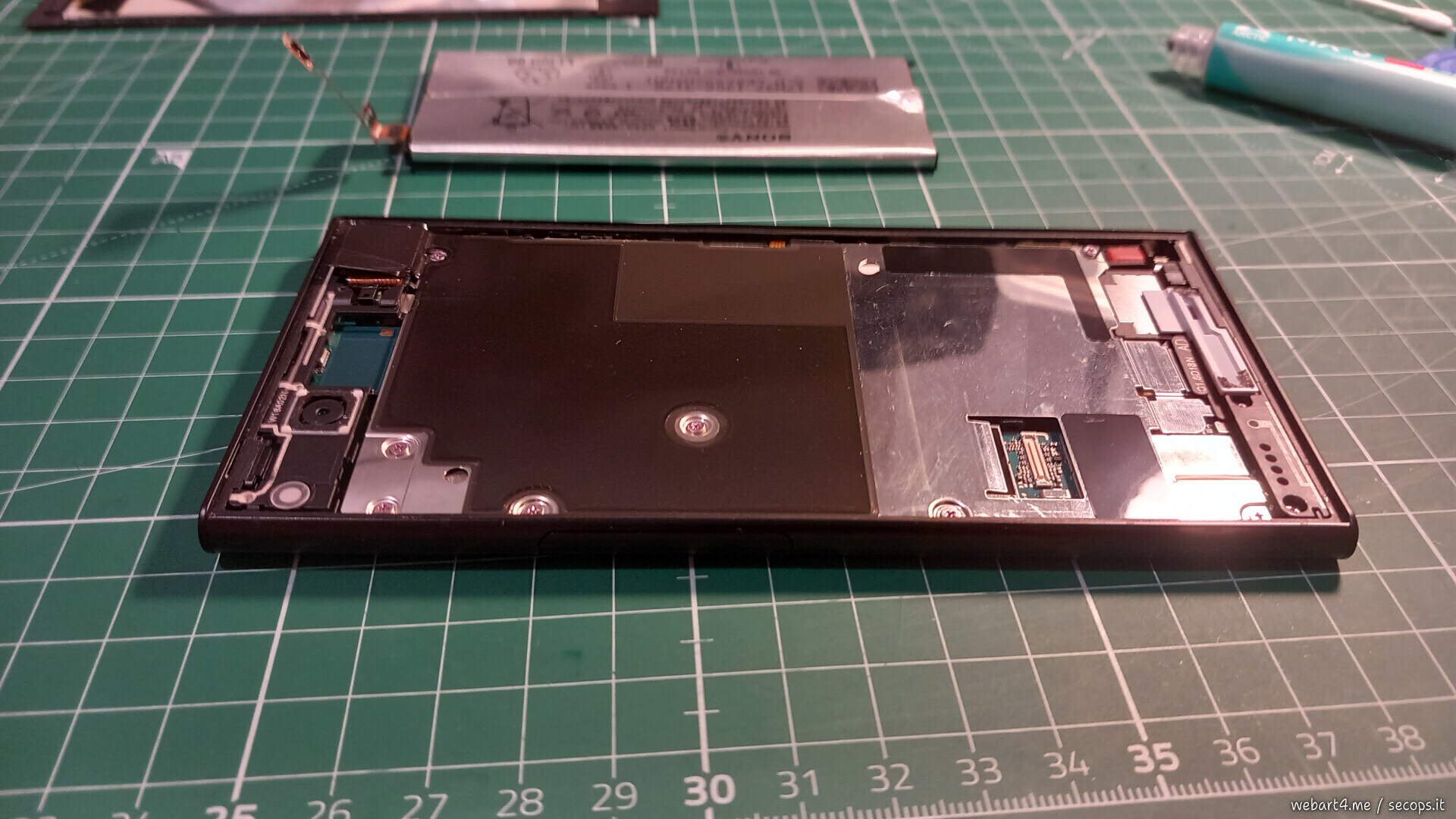

Pre-assembly
Pre-assembly 1920x1080

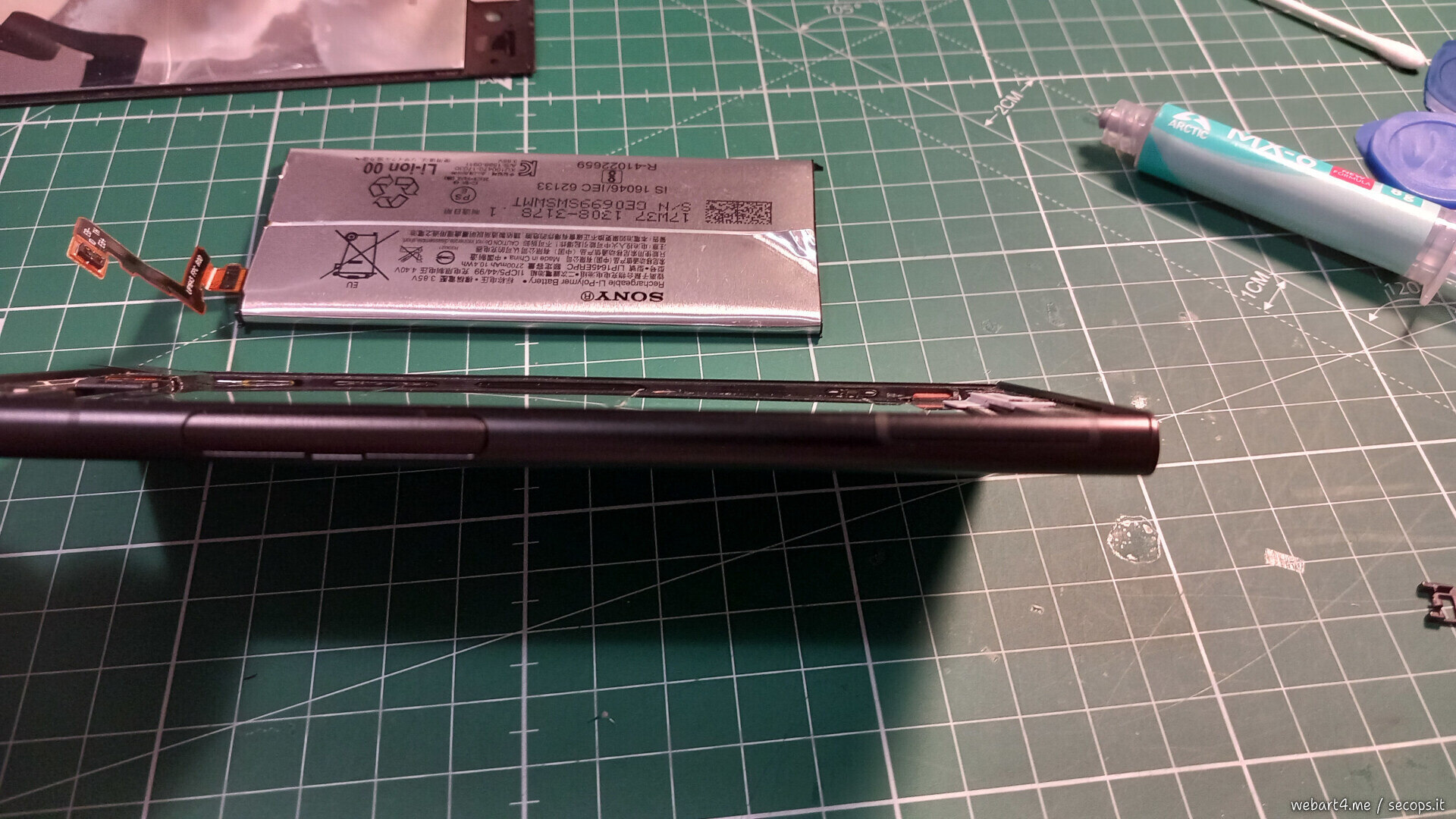

Nice and flat
Nice and flat 1920x1080


Screen glued with T-7000.
And while we’re at it, we’ll put on a new screen protector.

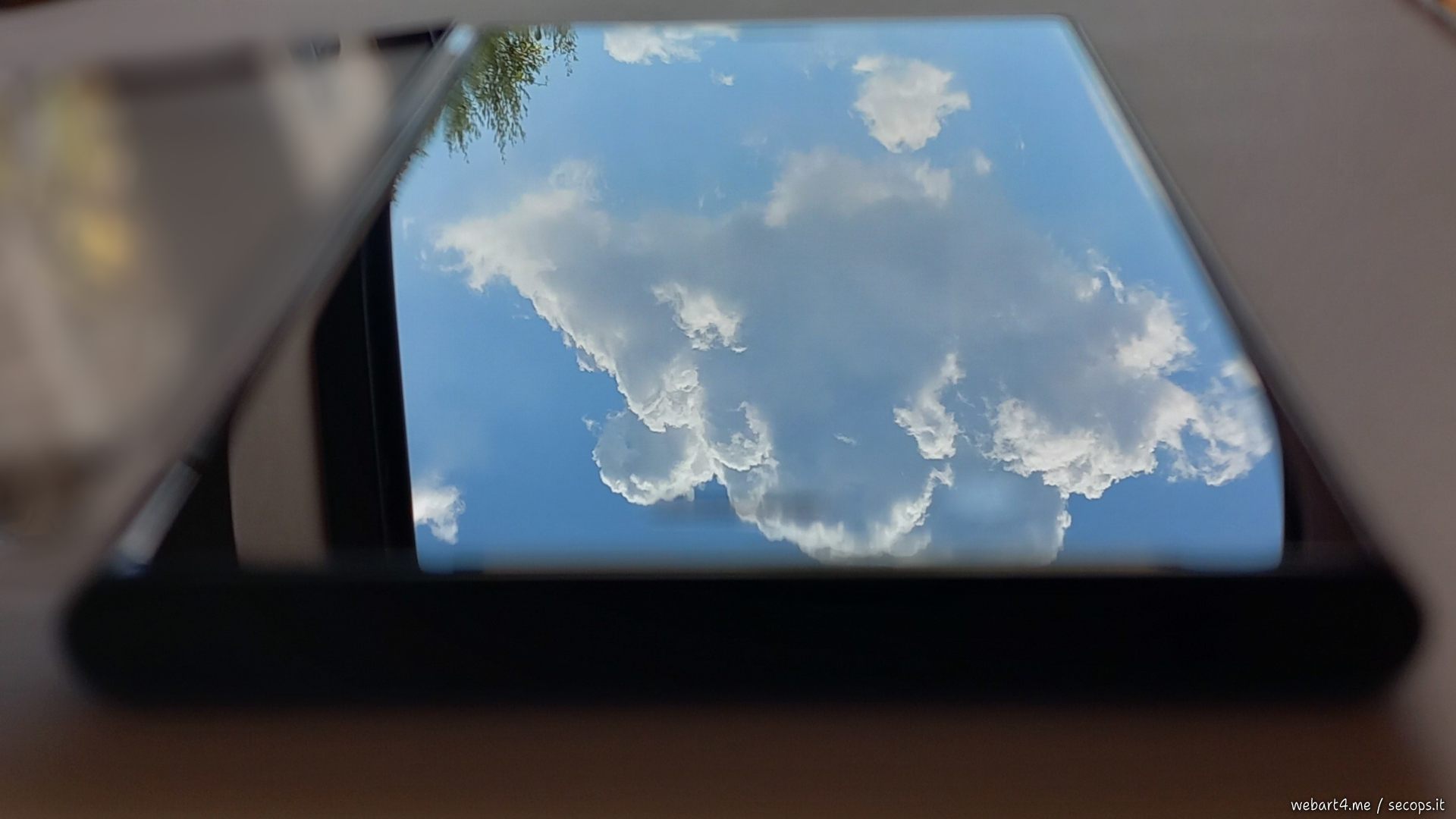

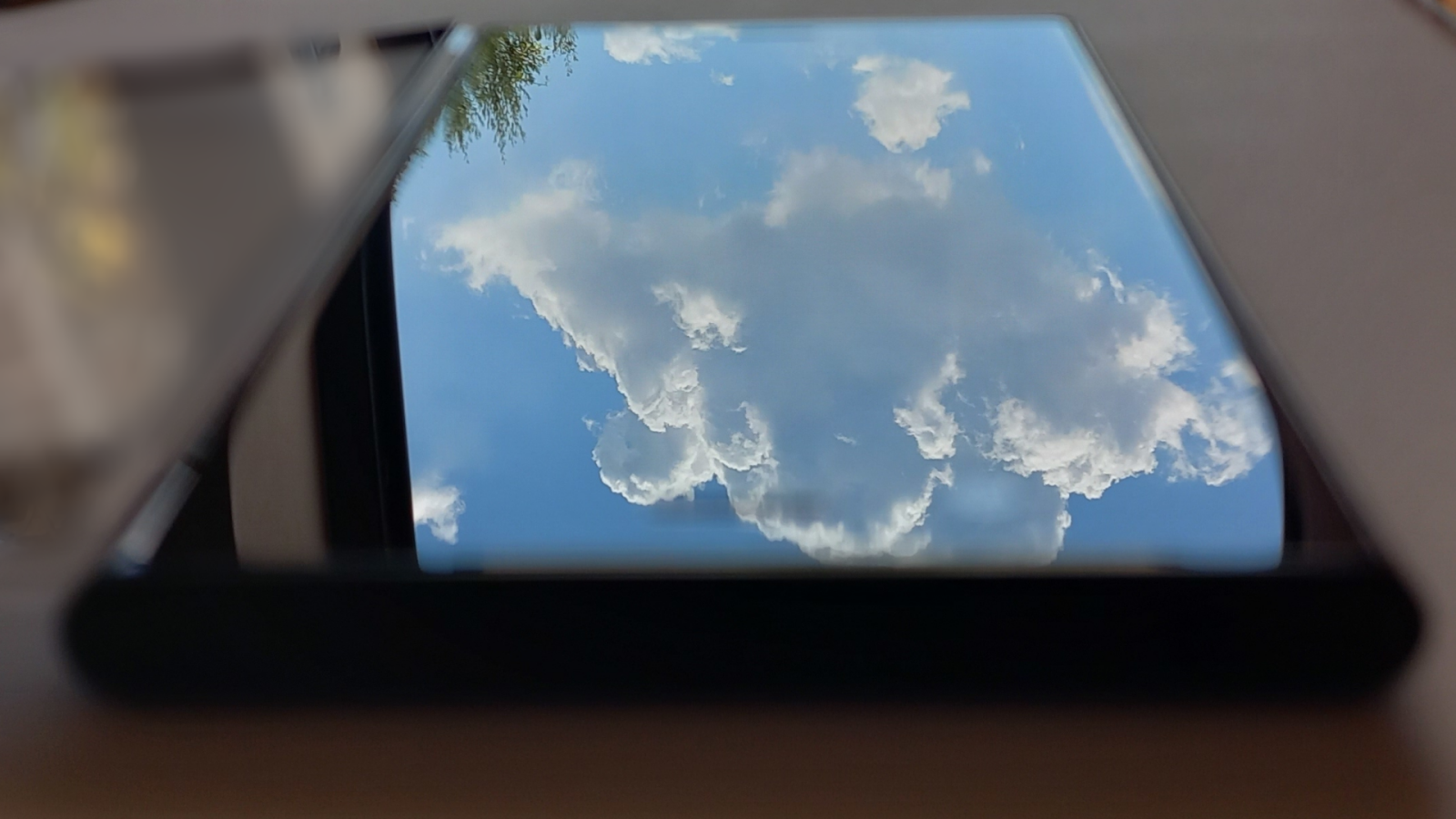

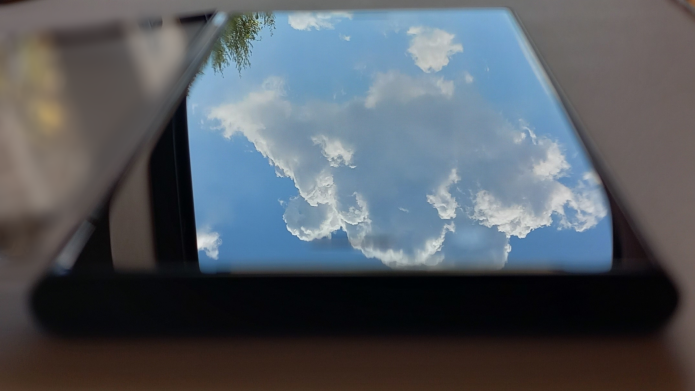

Display cleaned 1920x1080 20260819_135731.png
Display cleaned

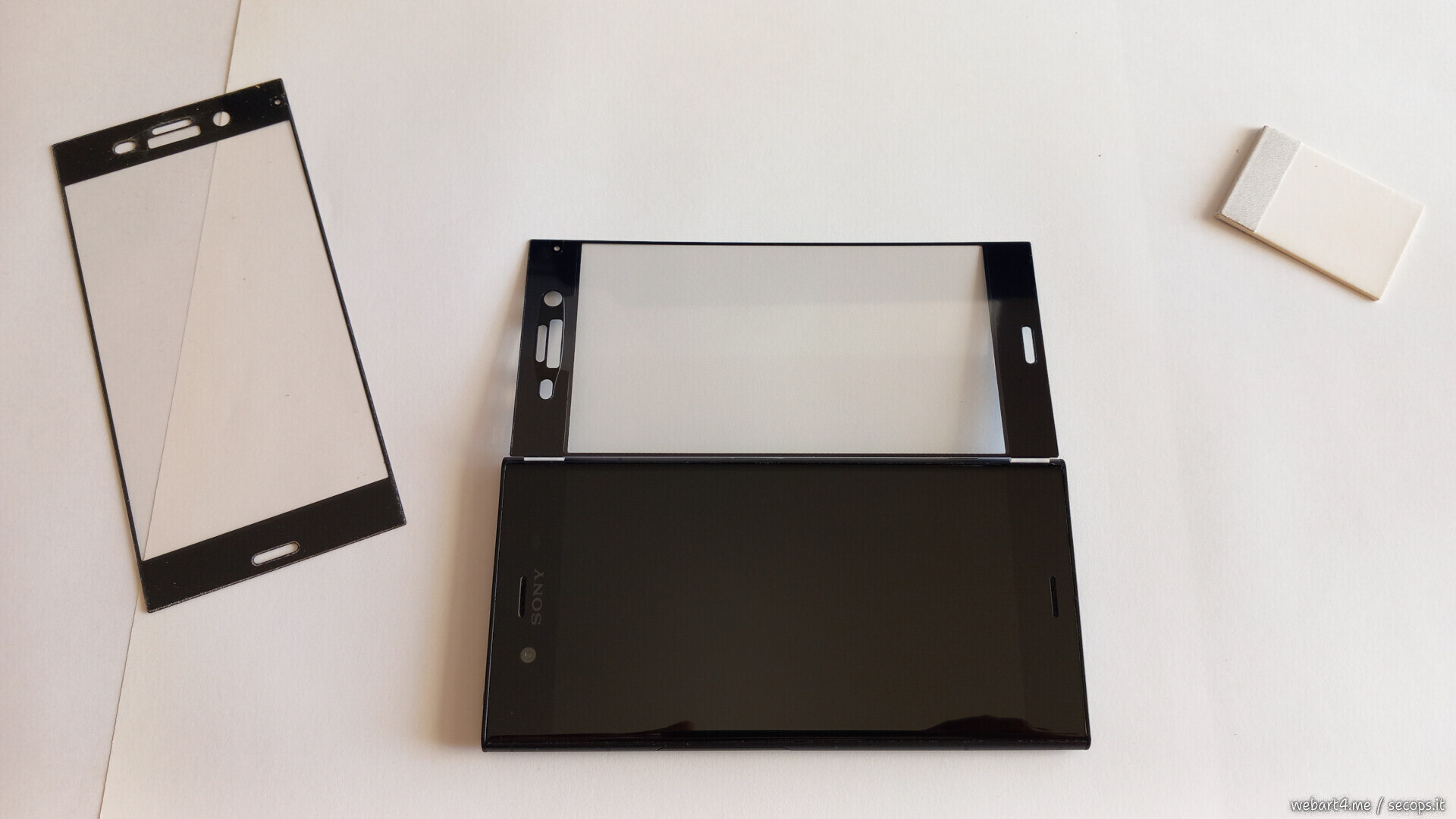

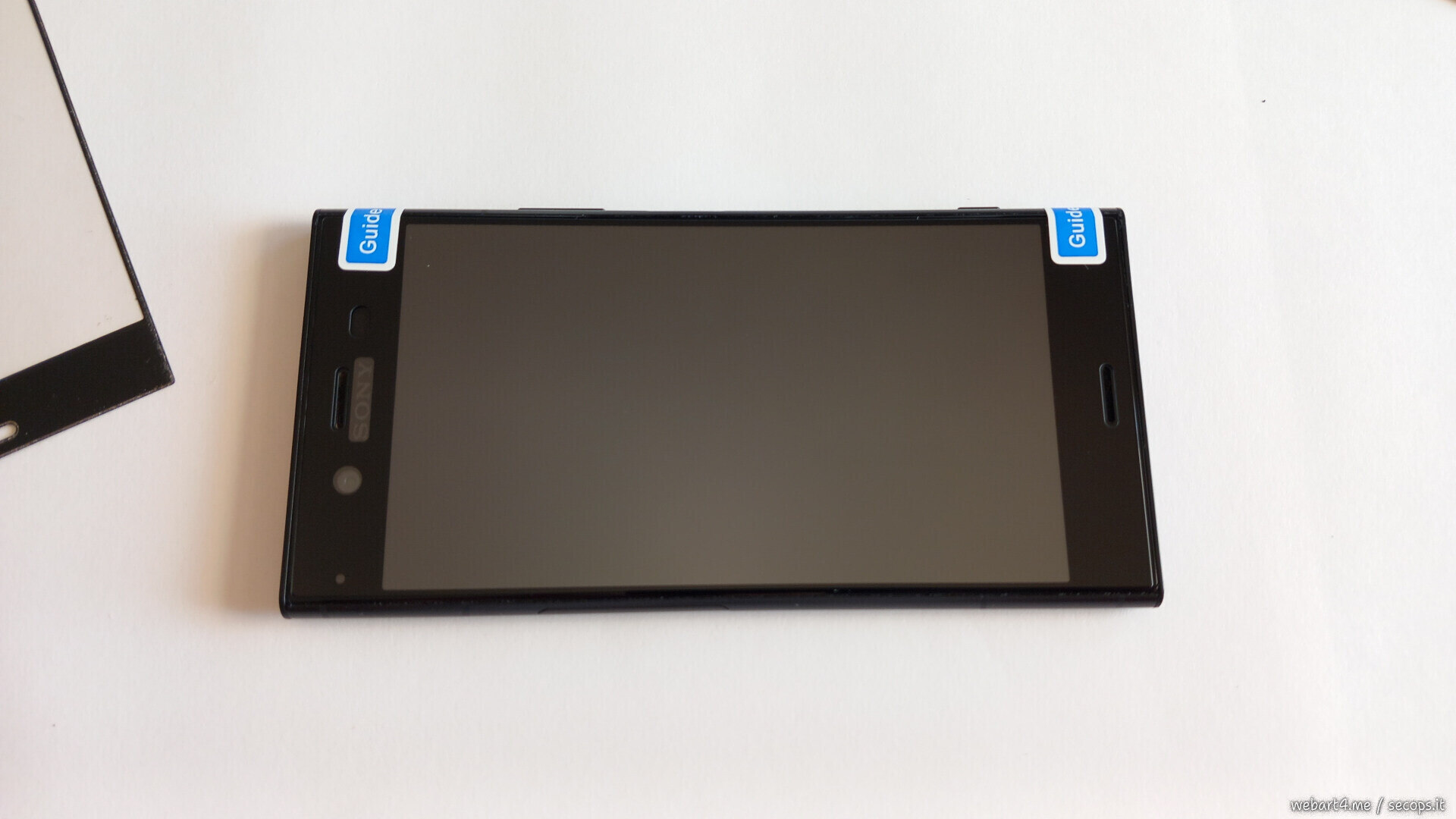

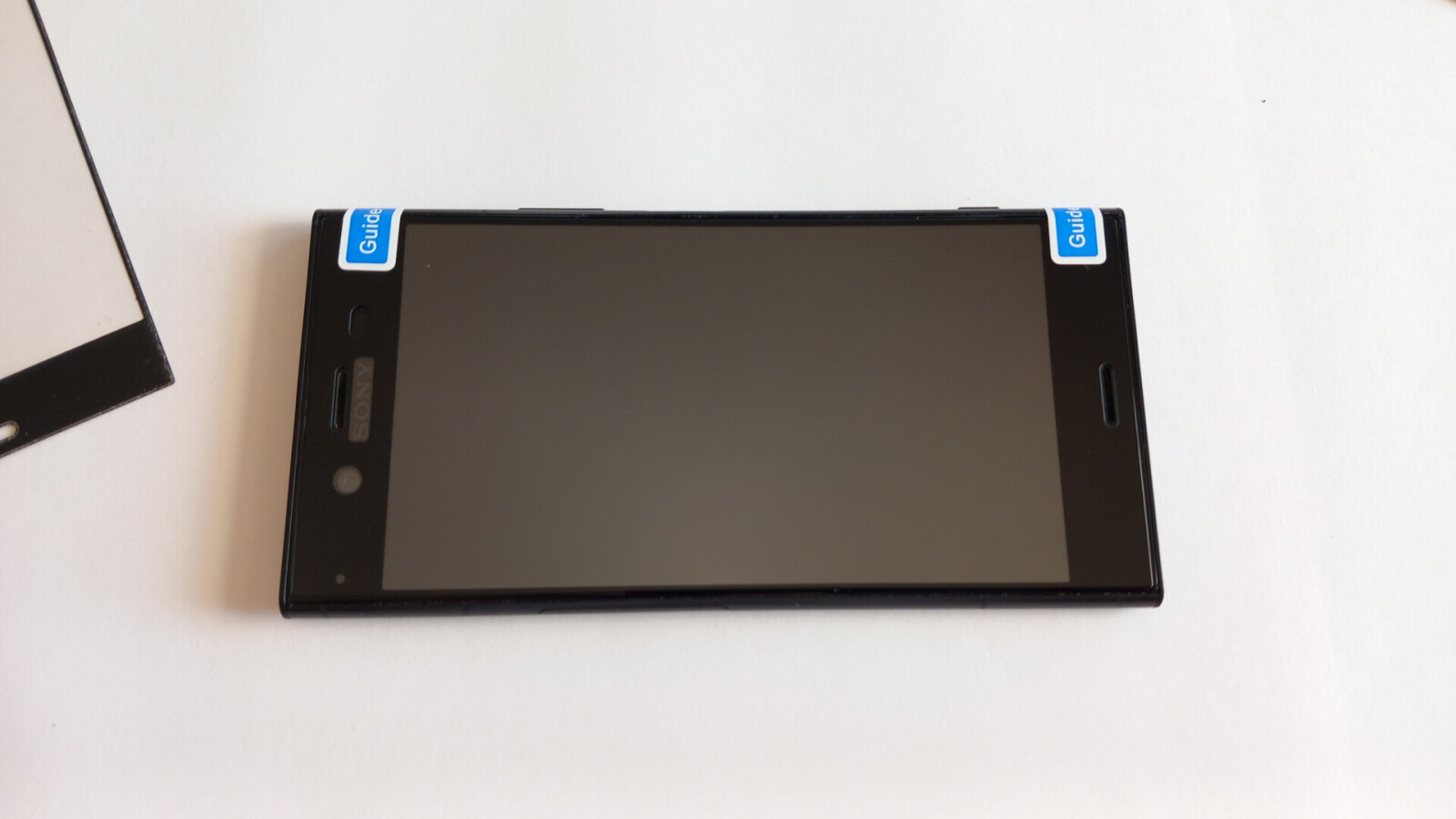

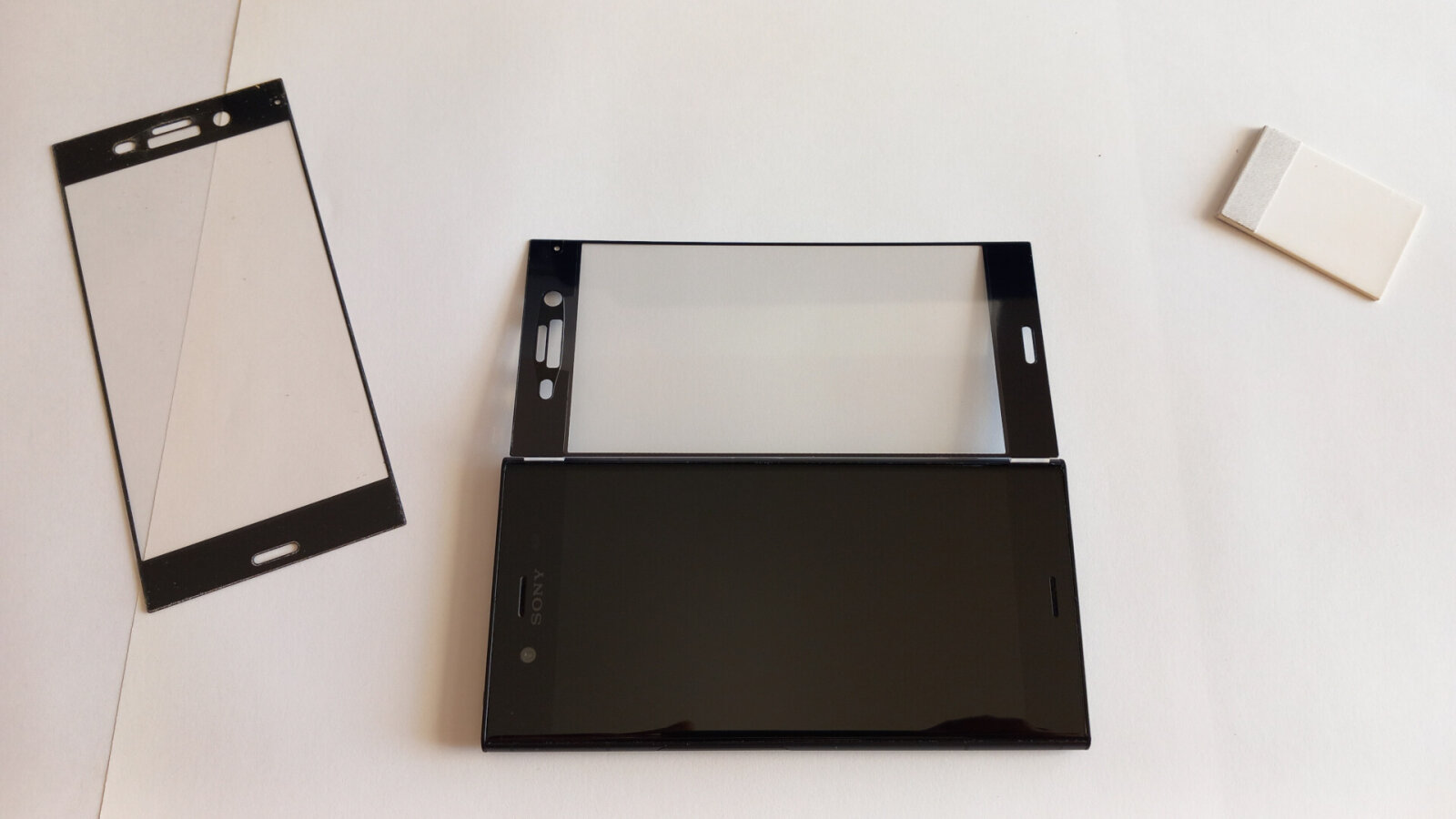

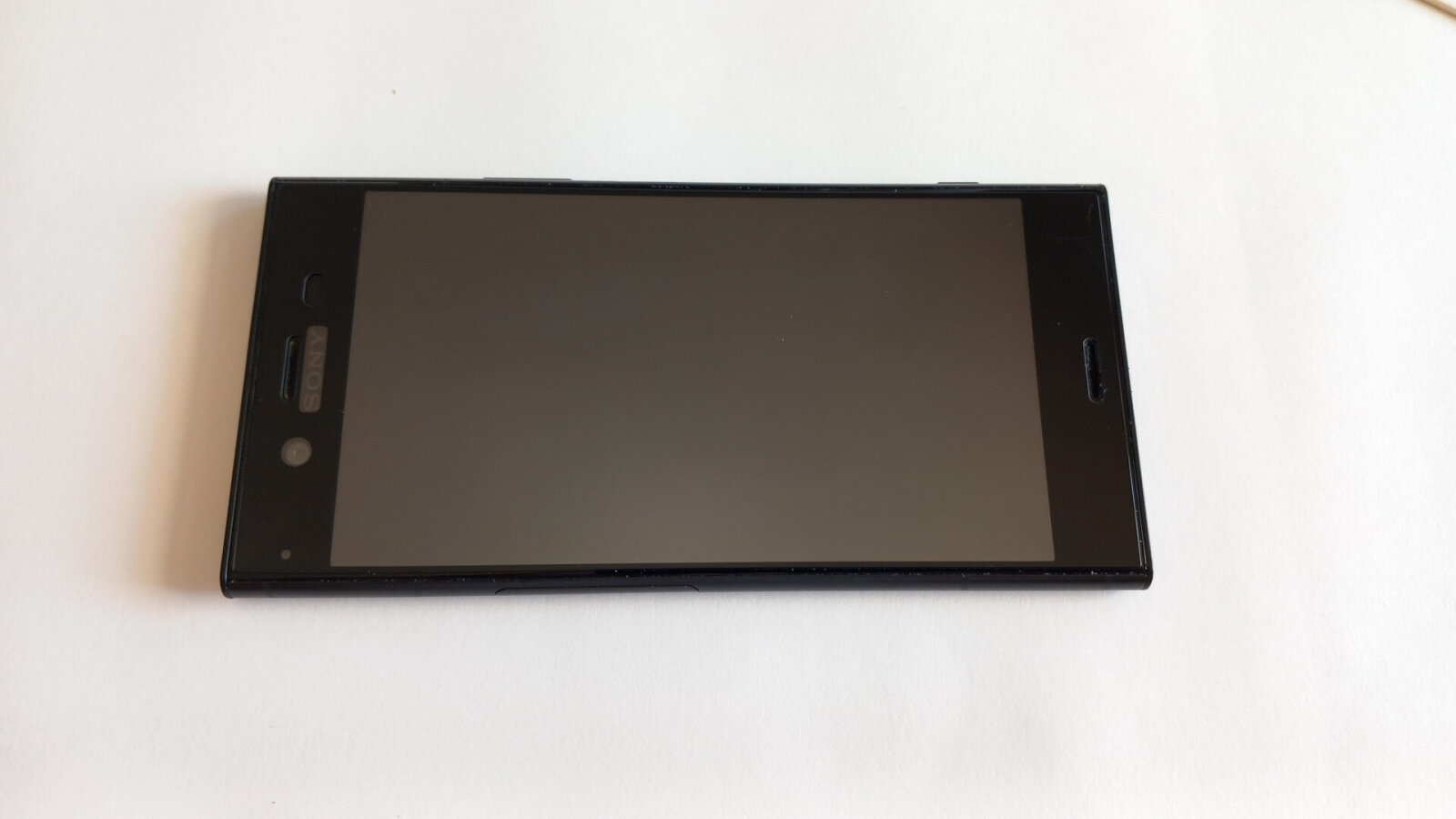

Screen protector
Screen protector 1920x1080
Screen protector
Screen protector 1920x1080
Screen protector
Screen protector 1920x1080

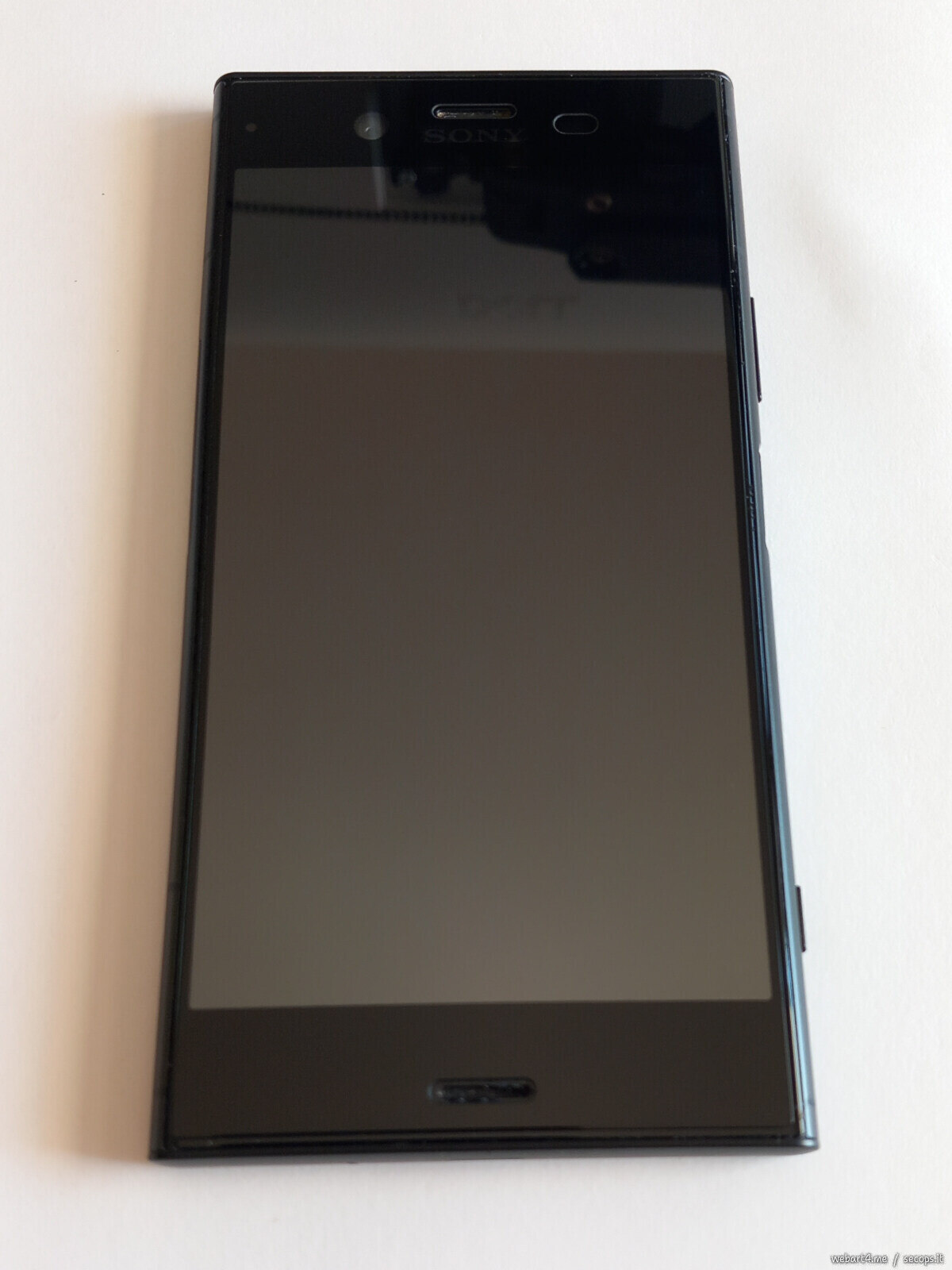

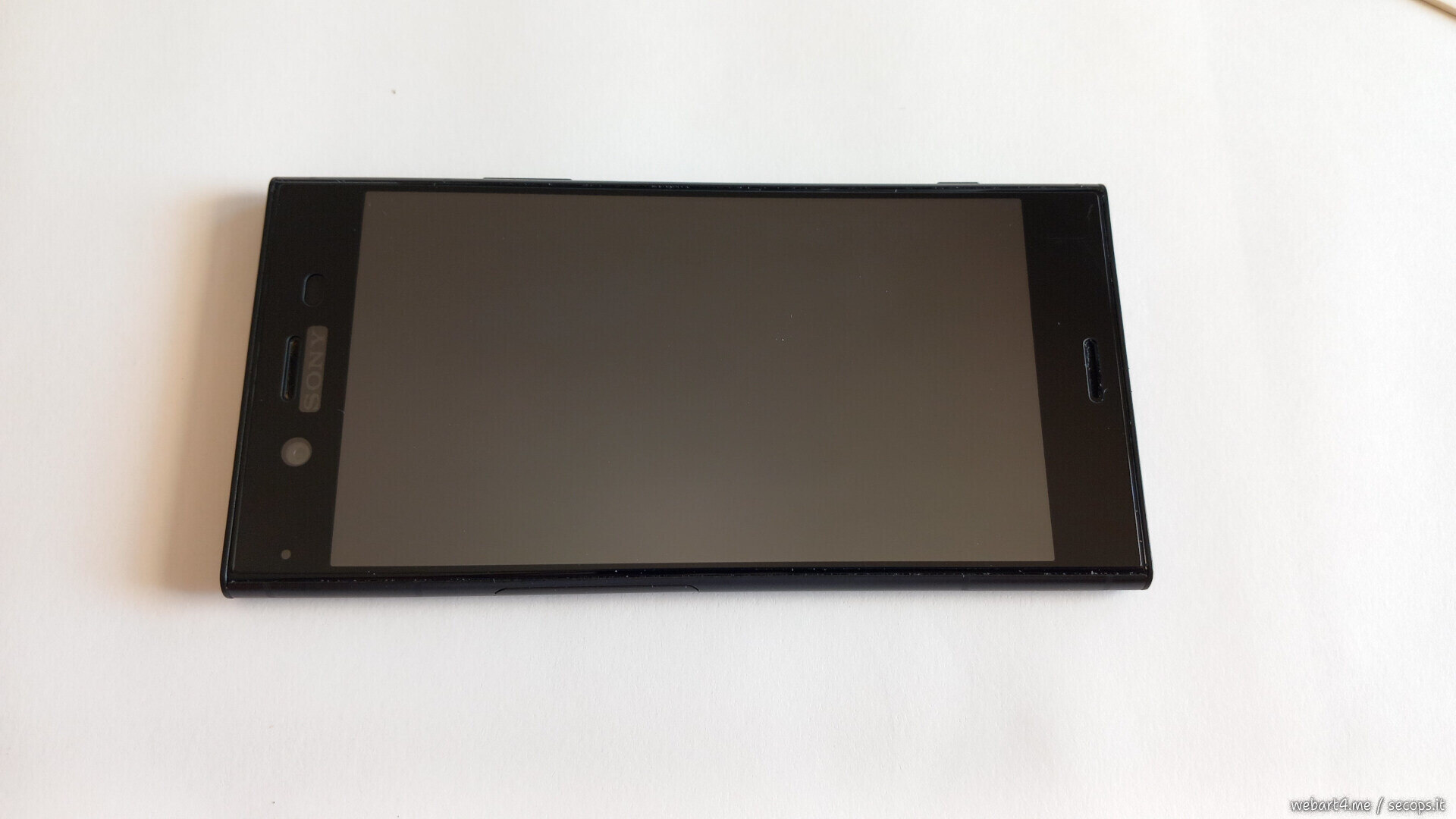

Practically perfect 1200x1600 20260819_140725.jpg
Practically perfect
